Second-Layer And Support Materials For Complete Installations

Basic Line is the practical DrARTEX support-material family for building a complete soundproofing system after the first-layer damper is selected.

Rather than damping the metal panel, Basic Line addresses the remaining acoustic and installation needs: absorption, insulation, heat-control, sealing, and finishing support.

Second-layer materials Support and finishing Installer-friendly system logic

Ask About Basic Line Back To Product Lines

Where Basic Line Fits

Start with a first-layer damper from Earth, Electra EV, or Rock.
Use Basic Line where the build needs absorption, insulation, heat-control, sealing, or finishing support.
Select materials by vehicle zone and acoustic goal.
Refer to each product page for current technical information and application guidance.

Material Role

Basic Line Completes The System Around The Damper

Basic Line supports the acoustic and installation layers chosen after first-layer damping. Each material family manages a different problem: sound energy within a cavity, sound transmission through a boundary, heat transfer, or local gaps and contact points.

Absorption

Sound Absorbers

Sound absorbers work inside cavities and behind trim. Their porous structure lets airborne sound enter the material, where small friction losses convert part of that energy into negligible heat. This reduces reflections and helps calm sound within the space.

Blocking

Sound Insulators

Sound insulators are barrier layers. They reduce the amount of airborne road, tyre, and exterior noise transmitted through a treated area after panel vibration is controlled. They block the sound path; reflection can occur, but they do not perform the same role as a sound absorber.

Comfort

Heat-Control Materials

Heat-control materials slow heat transfer through the treated area in either direction. They are often used in roof treatments to reduce solar heat entering the cabin and help retain cooler cabin conditions.

Finish

Sealers And Support

Sealers and support materials close gaps, manage local air-leak paths, and help finish trim and contact points. Their role is to support a complete, durable installation after the main acoustic layers are selected.

Product Function Guide

Choose Basic Line materials by function.

Compare the current published materials by the role assigned to them, then open the relevant product for variant-specific information and application guidance.

Basic Line Product	Functions
Baffle	Sound Insulation

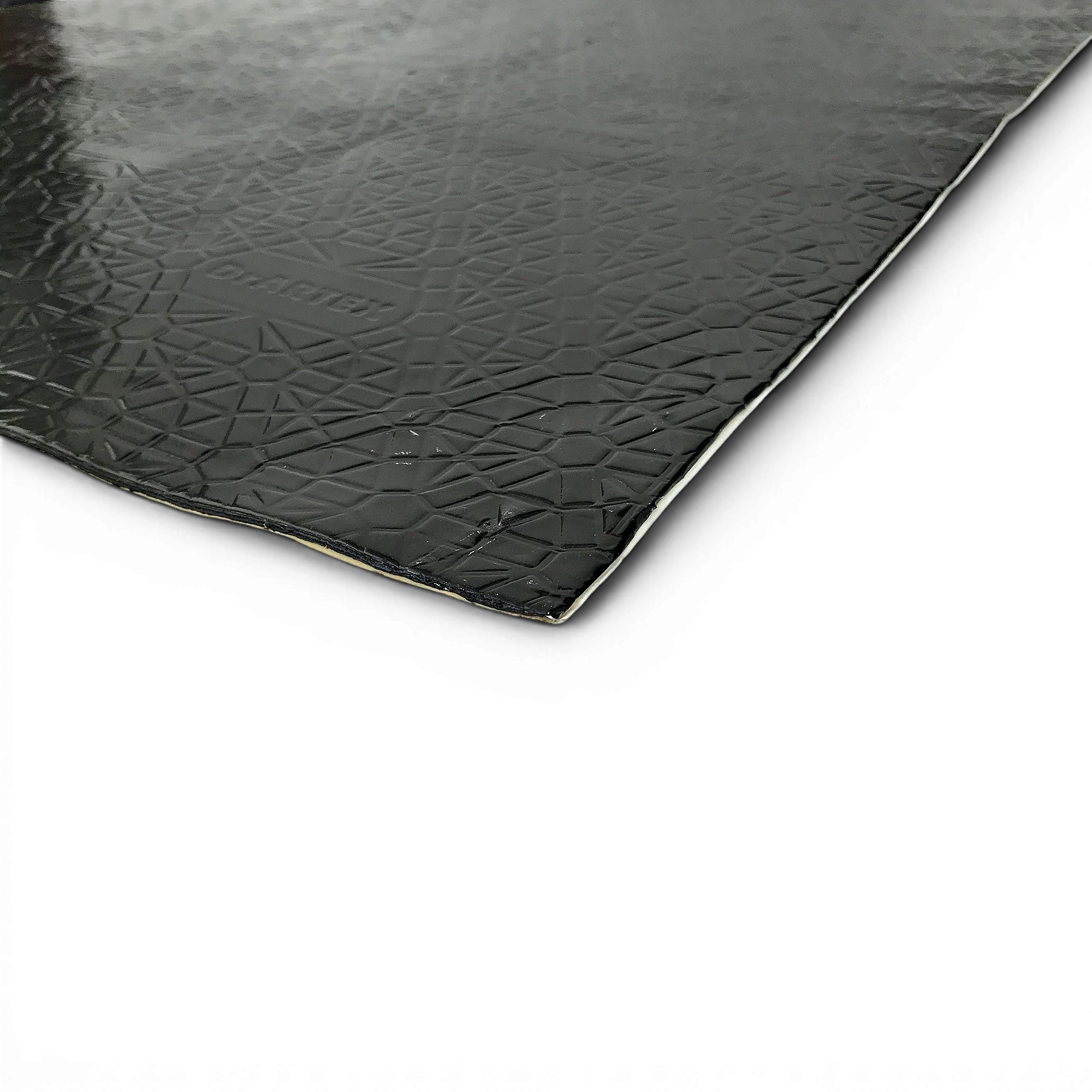

Shield	Panel Reinforcement

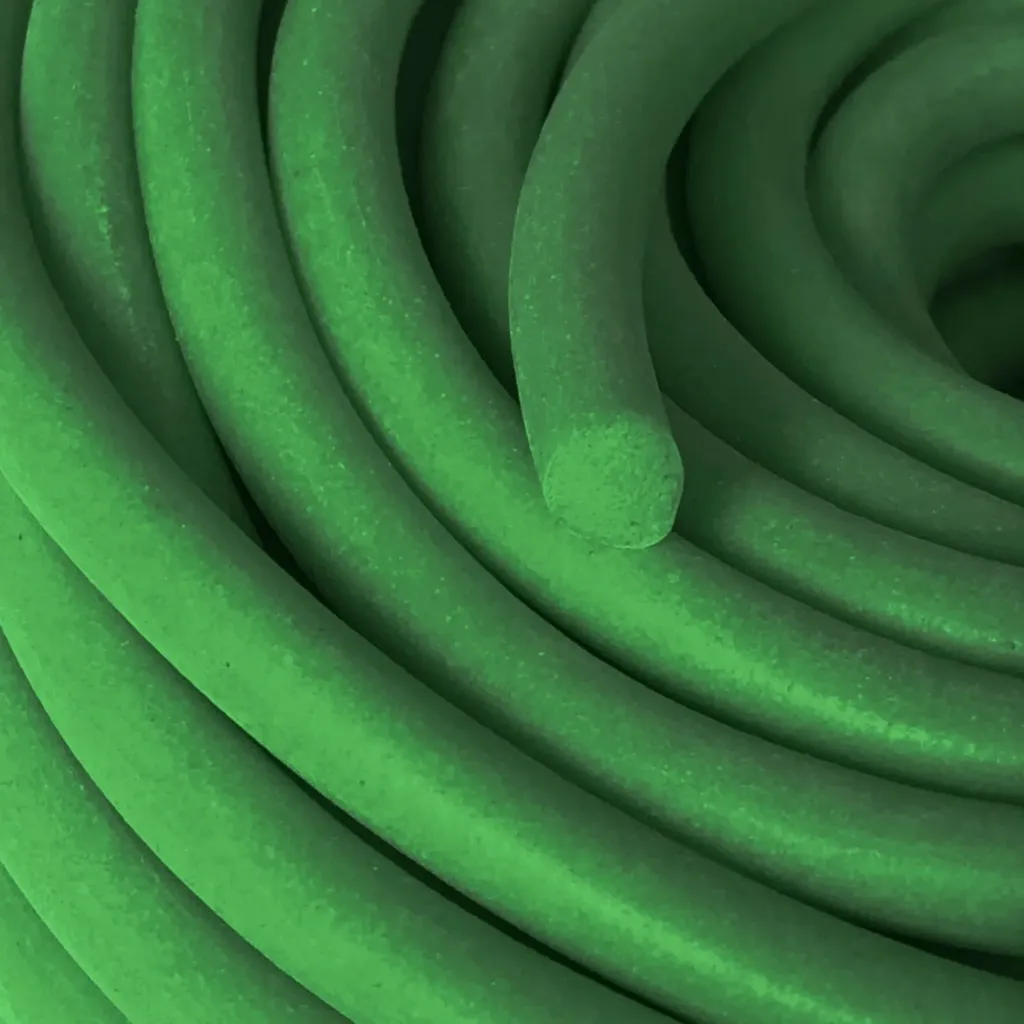

DoorSeal	Sound InsulationSealerInstallation Accessory

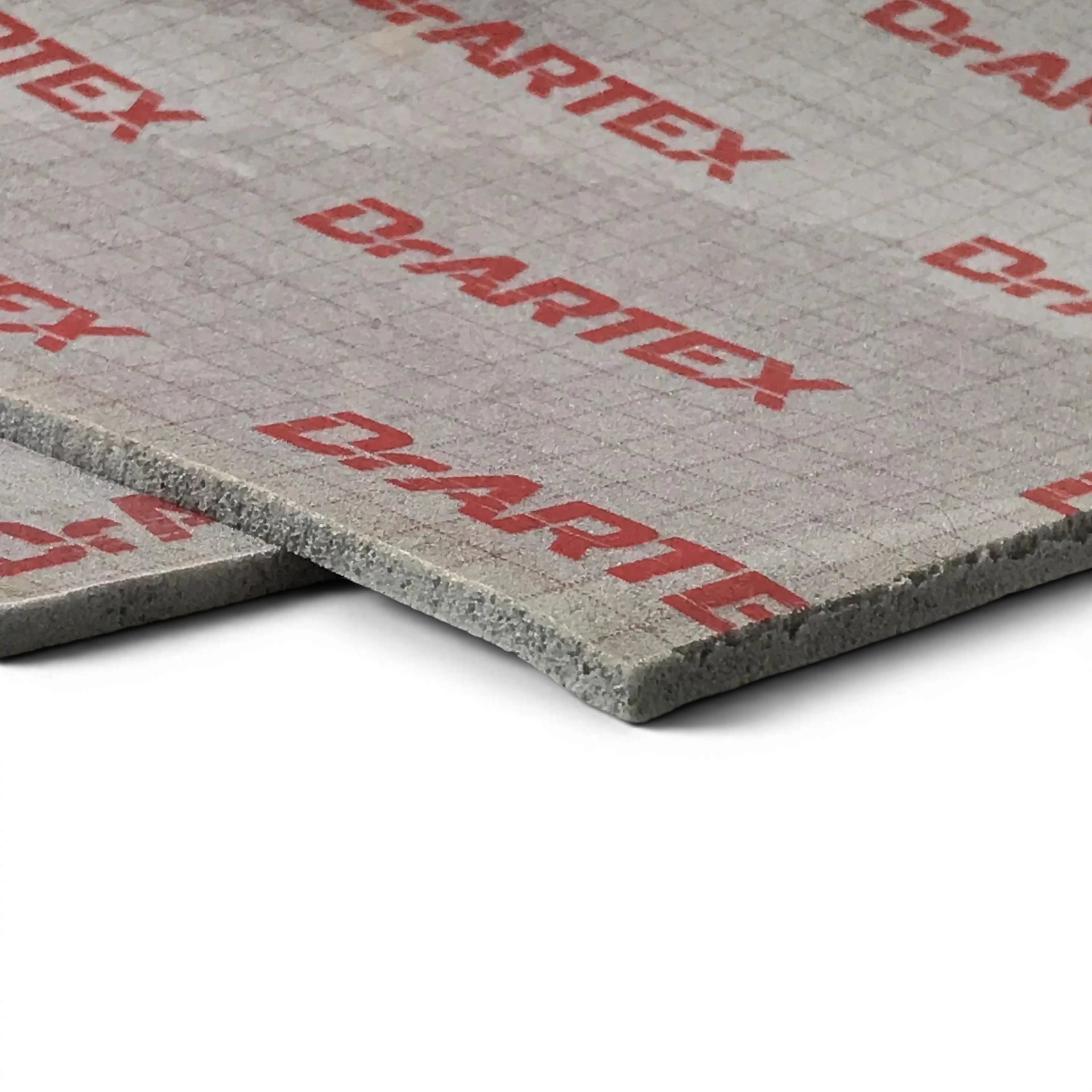

Lace	Sound Absorption

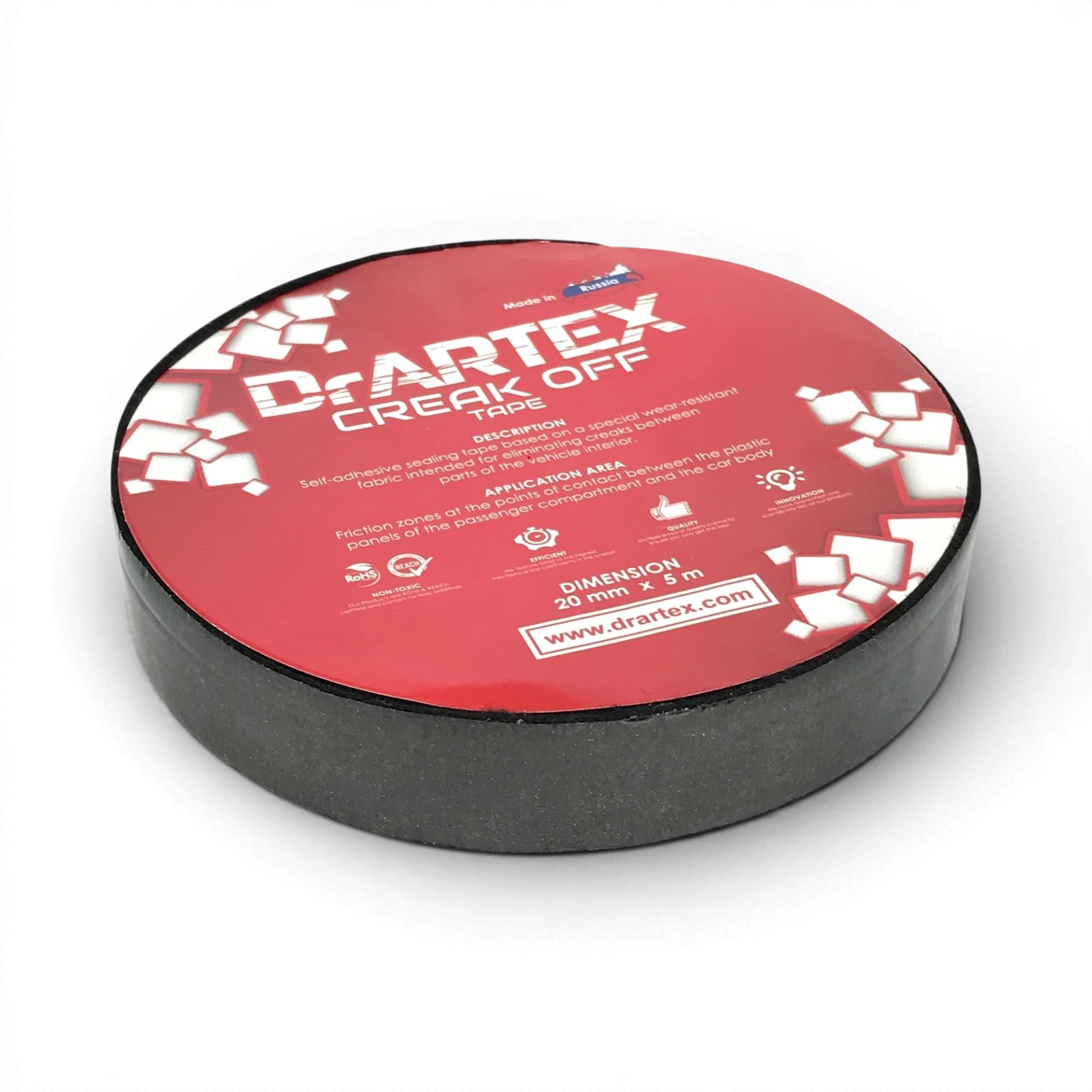

Creak OFF Tape	Installation Accessory

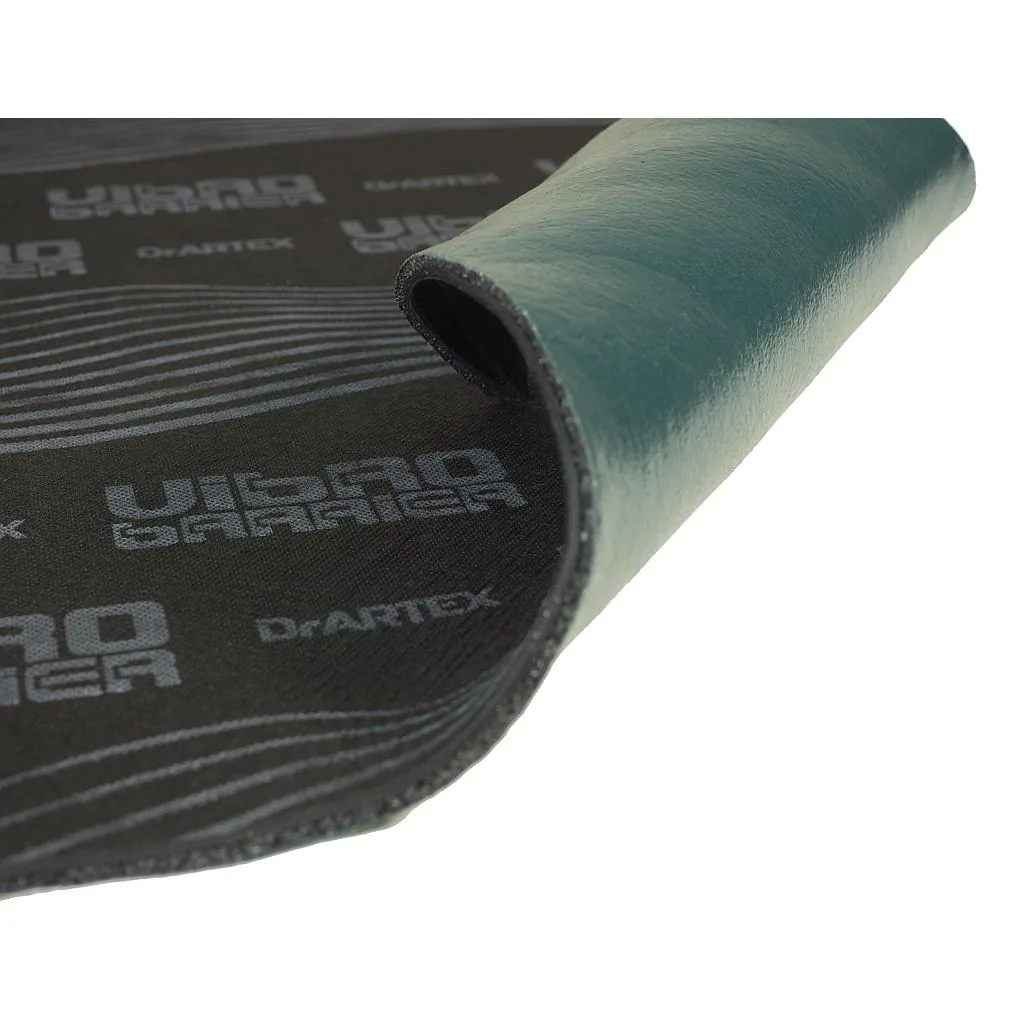

VibroBarrier 7+ 2022	Sound Insulation
SoundTrap Orange	Sound Absorption

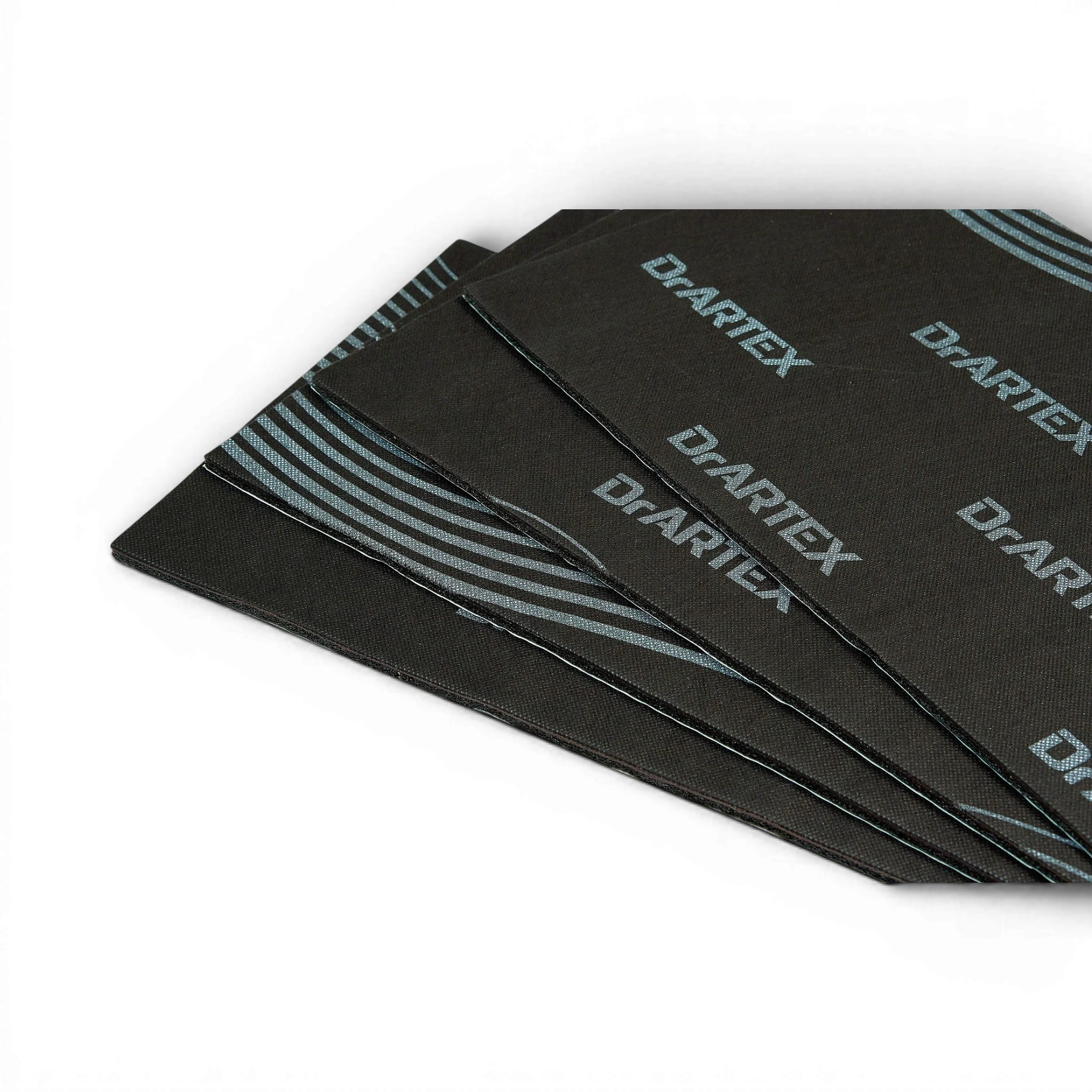

LOCKER	Vibration DampingSound Insulation

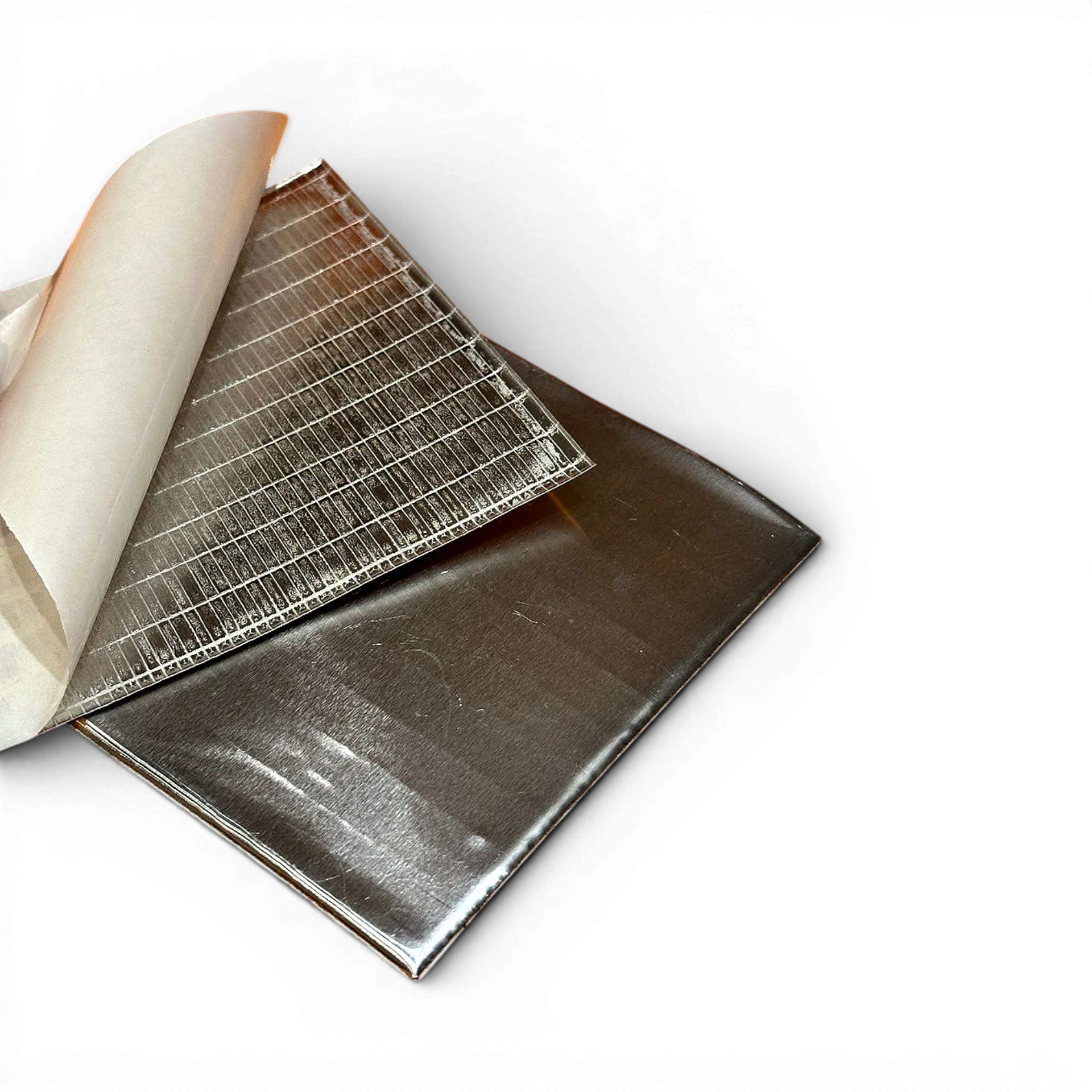

ALUM 250	Panel ReinforcementSealer
ZIMA	Sound AbsorptionThermal Insulation

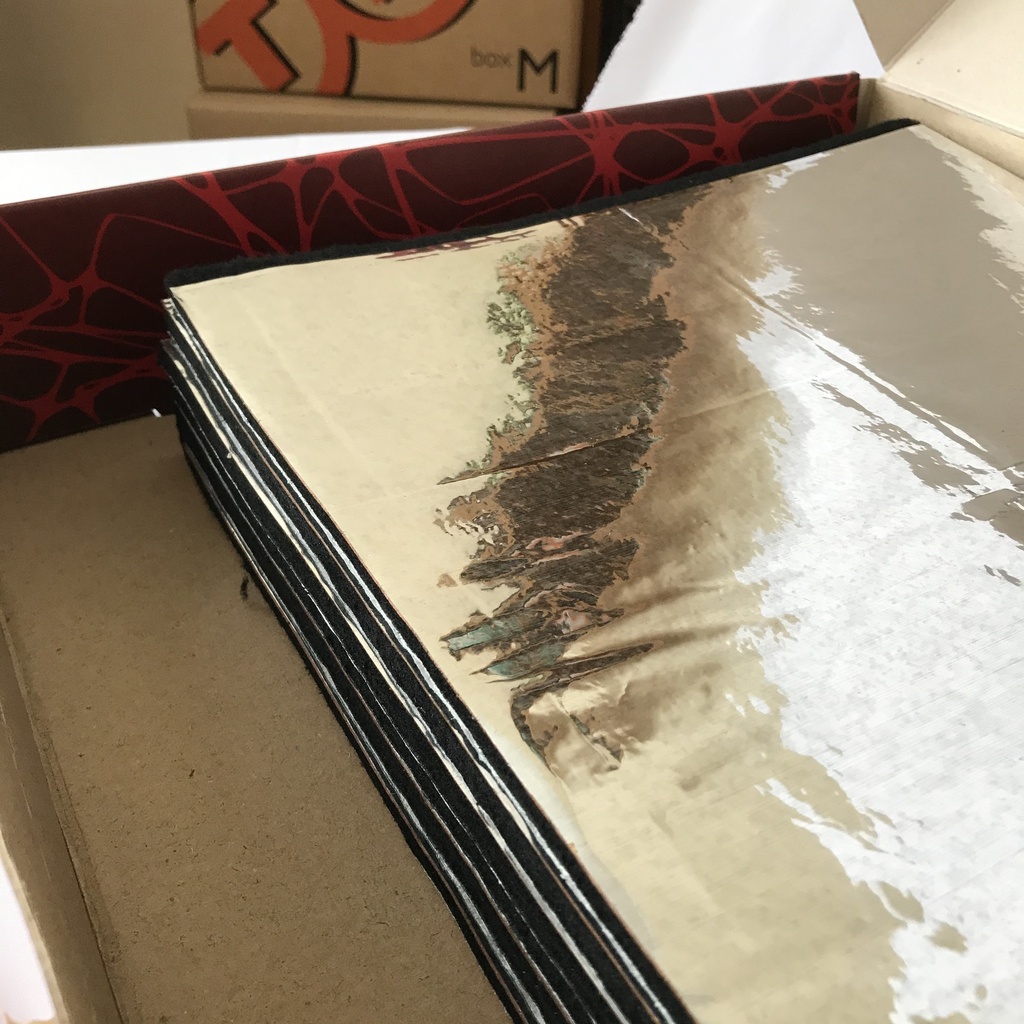

Baffle Zima	Sound Insulation

Global DrARTEX Inquiry

Need Help Choosing Support Materials For A Build?

Send the country, vehicle type, first-layer line, application zones, and target noise problem. We will route the inquiry to the right DrARTEX contact.

Contact DrARTEX

Singapore customers, dealers, and installers should use Car Comfort Lab for local pricing, installation, and support.
