DrARTEX EV Blue (5mm, 2026-B)

Available variants

EV Blue — 5mm / 2025 EV Blue — 5mm / 2026-B

Catalog product

Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.

Ask About This Product Official Store & Guide

DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.

Technical data

Specifications

Description

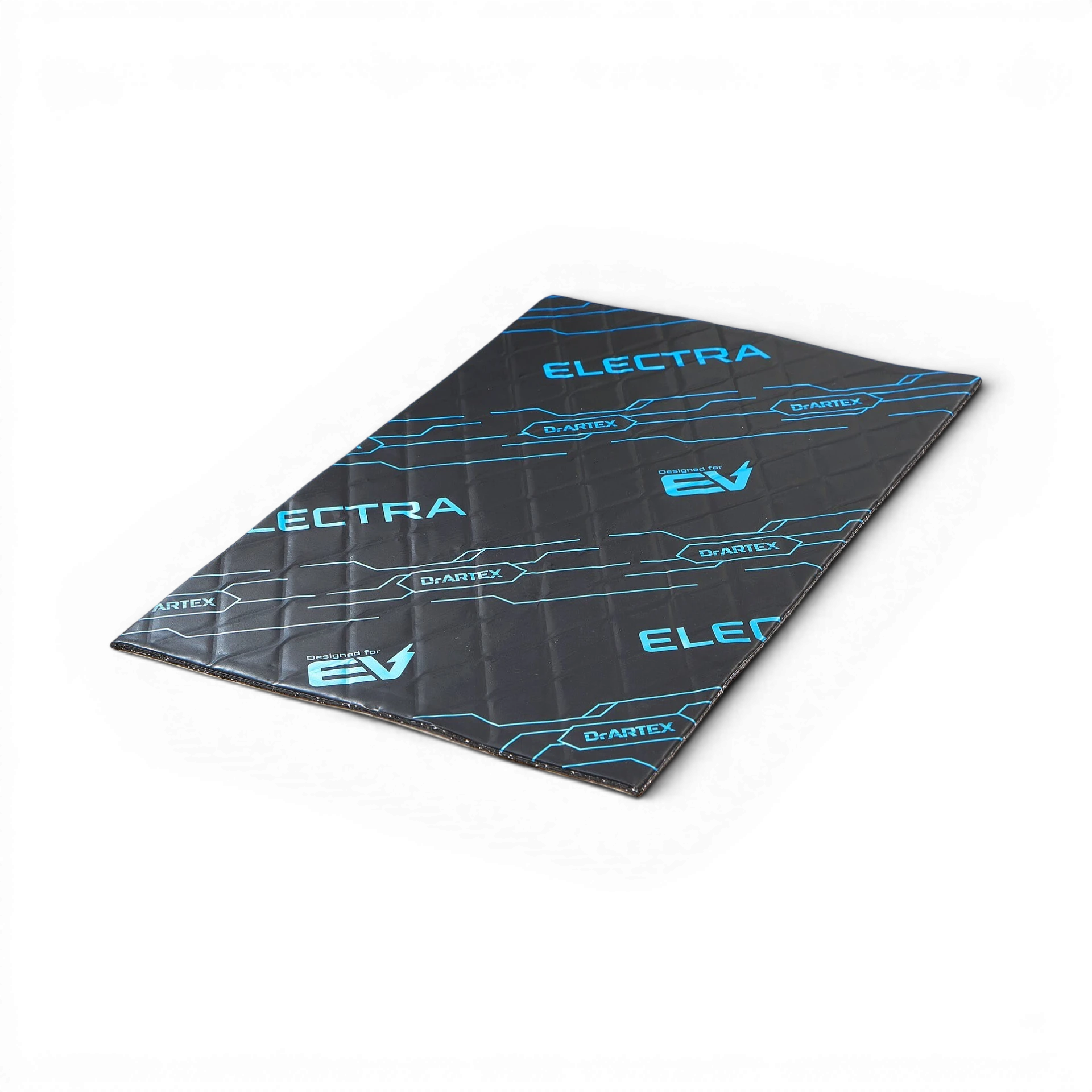

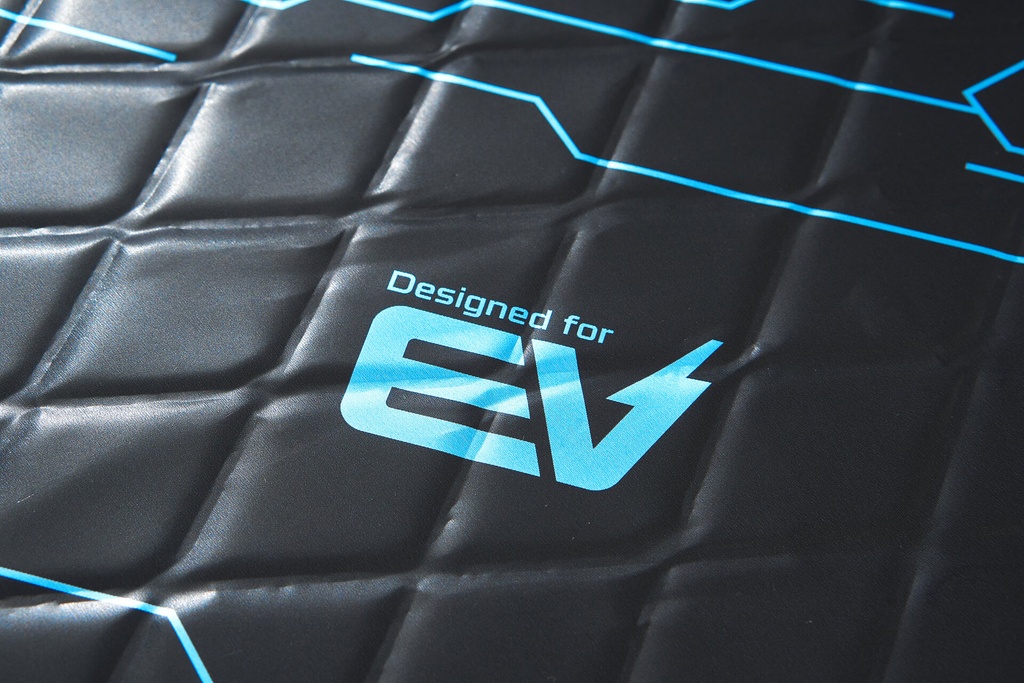

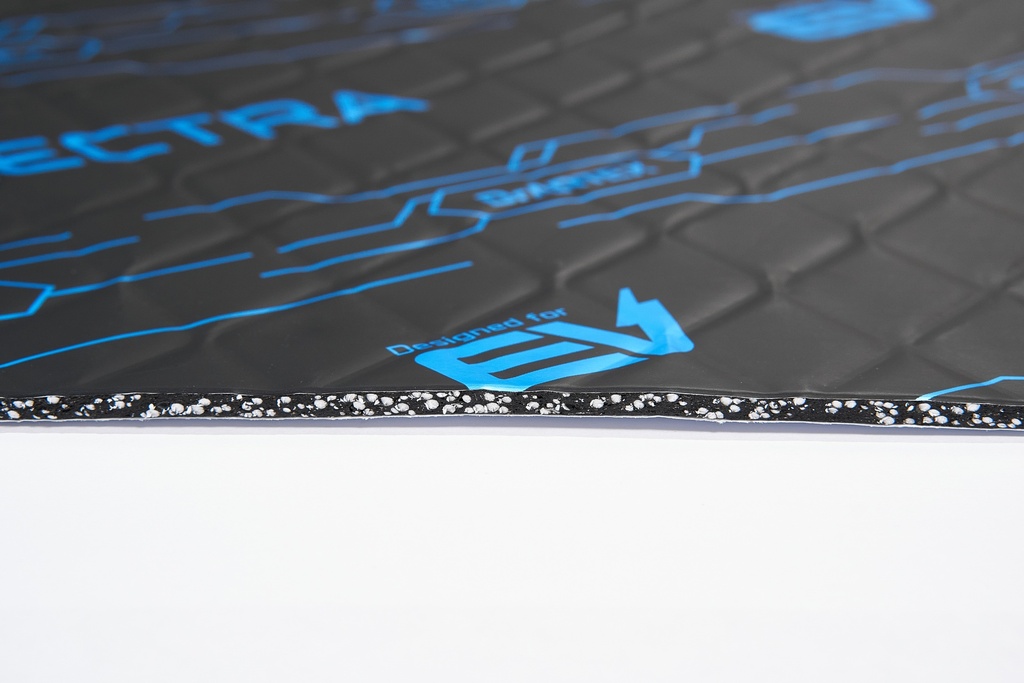

DrARTEX EV Blue is a one-layer Electra EV vibration damper for roofs, doors, trunks, and trunk lids, designed to deliver substantial panel control without building a heavy multilayer installation.

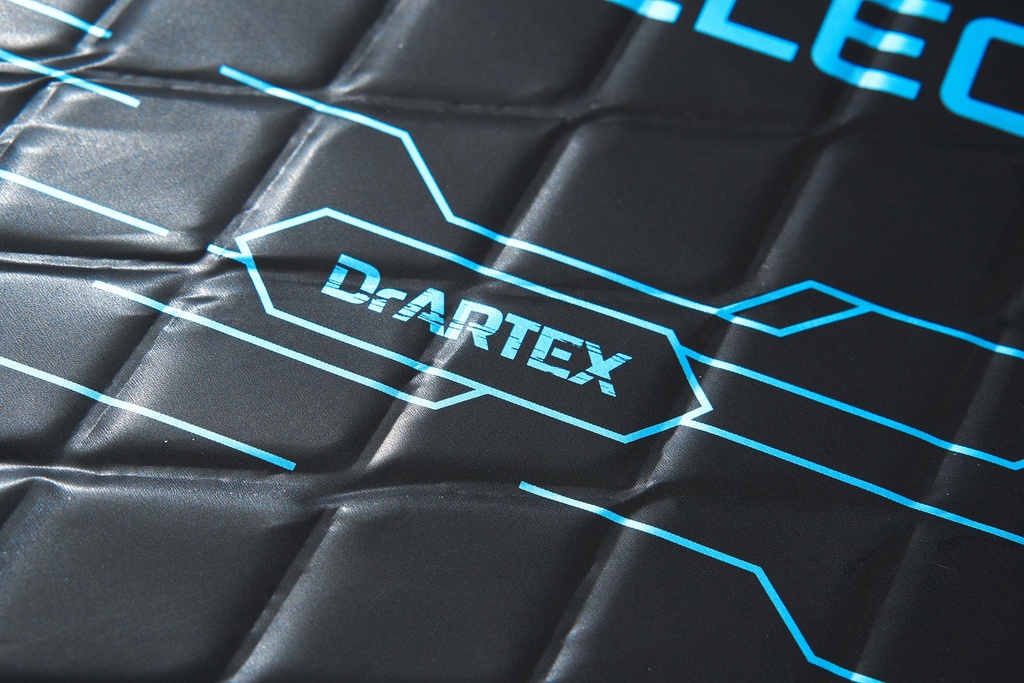

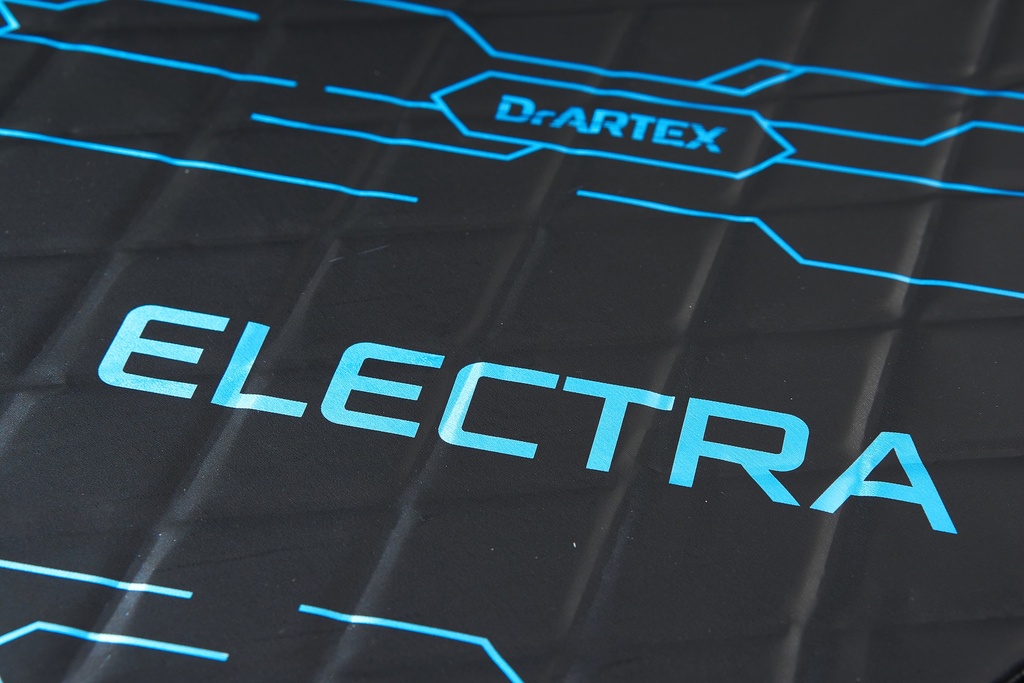

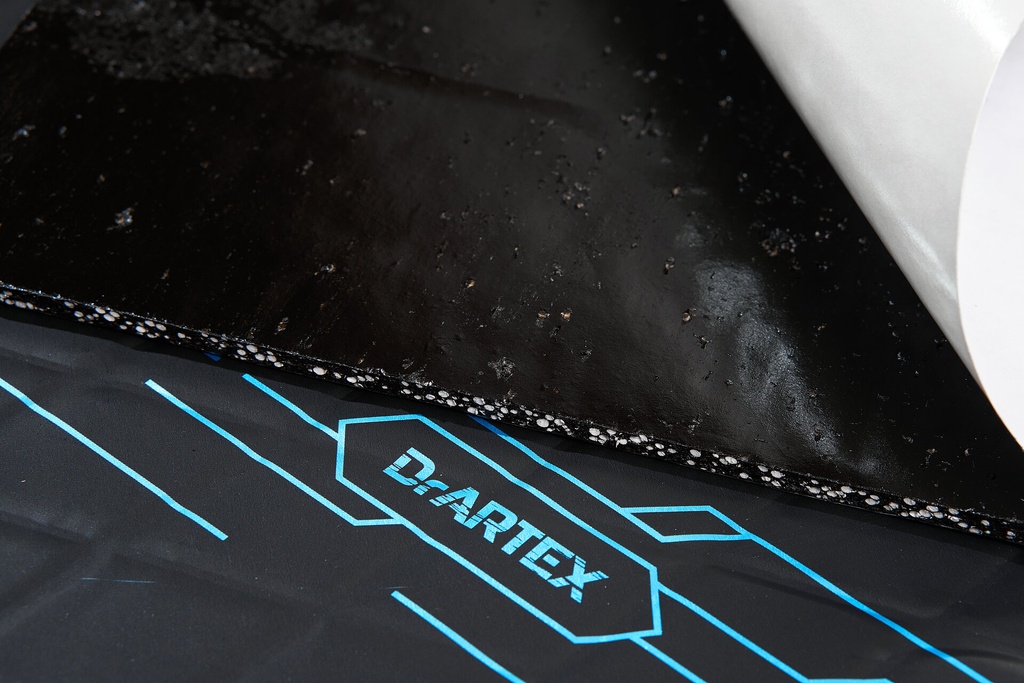

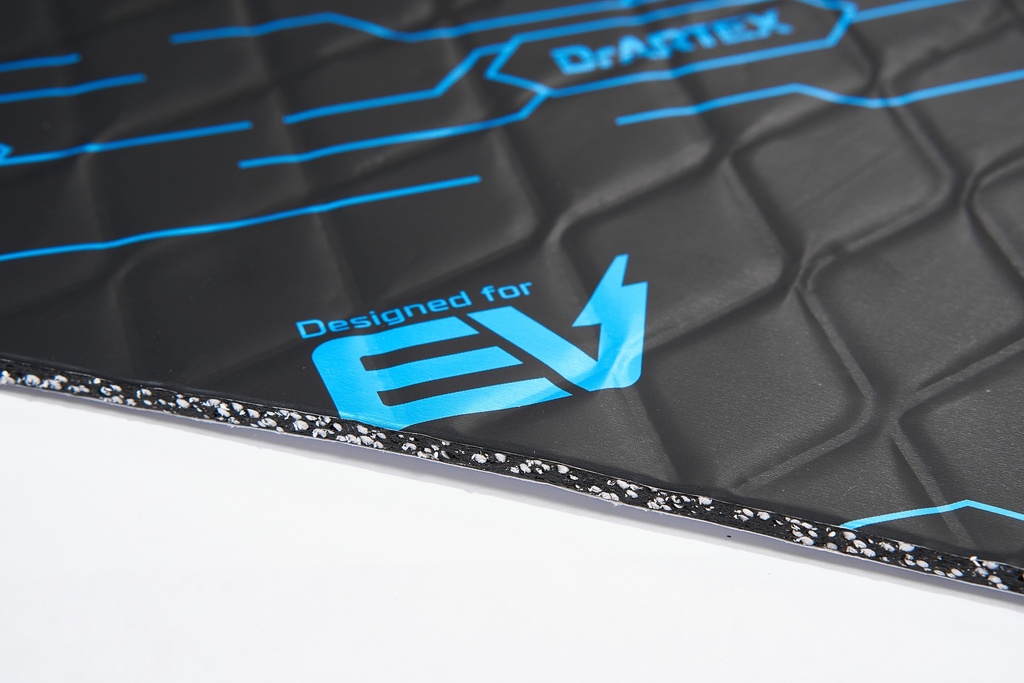

Its ASRM profile uses aero-granule technology to combine strong damping and body-panel stiffness with a lower-mass construction. The aluminum foil facing and clean, odorless format support practical single-layer installation on suitable vehicle panels.

This variant uses a more compact sheet format for controlled handling on doors, roofs, and other shaped panels.

Name of index	Value	Testing method
Density	0.75
Mastic	AEROSPACE	ROHS (EU) 2015/863
Material Thickness	5mm
Dimension (WLH)	50 x 30cm per sheet
Sheets per Package	12
Sheet Length	50cm
Sheet Width	30cm
Total Sheet Area	1.8m²

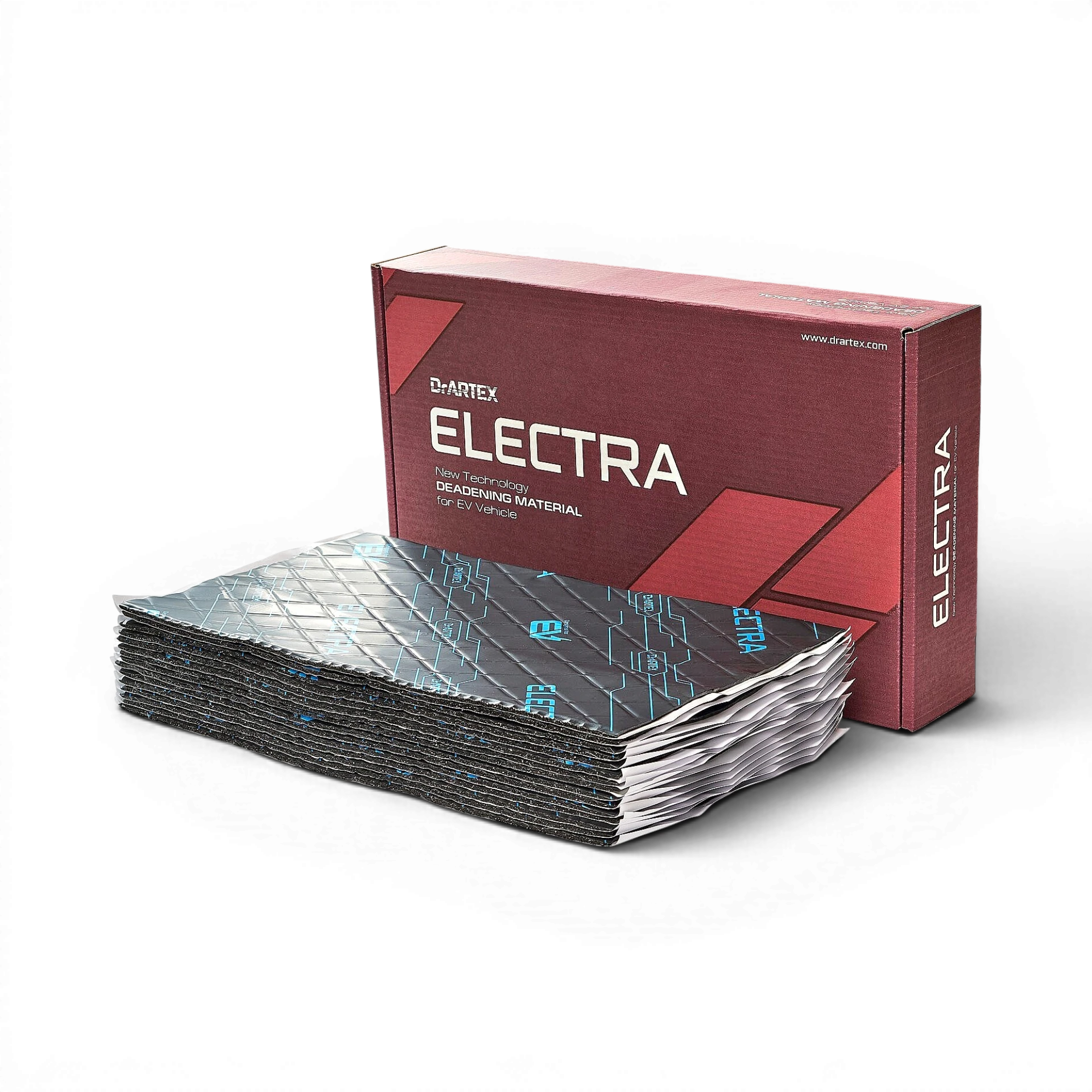

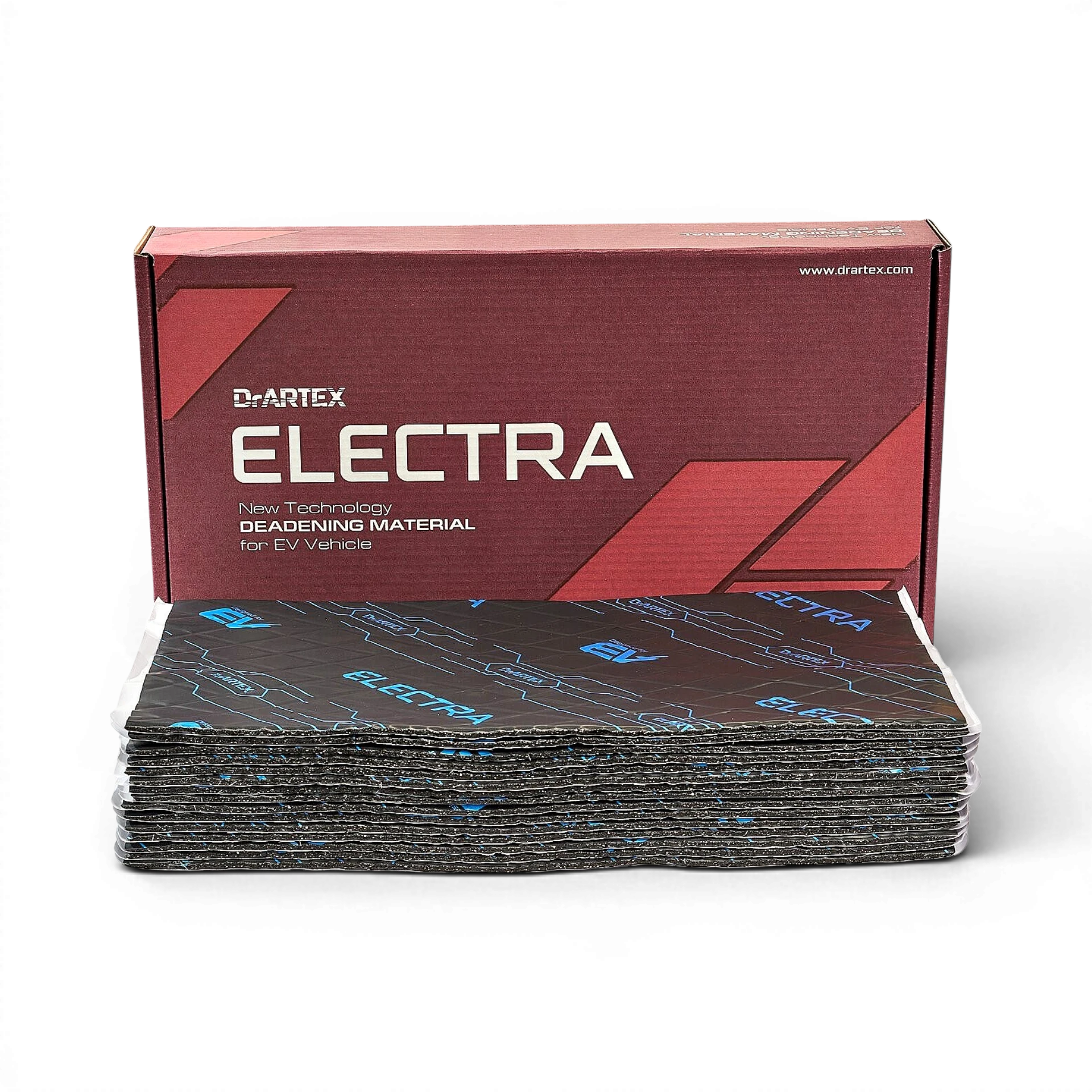

Package Contents	12 sheets 50x30cm
Packaging Type	Corrugated cardboard carton
Package Dimension (WLH)	55.5 x 33.1 x 7.9cm
Foil (Outer) Thickness	100µm +/-10%	GOST 17073-71
Mechanical Loss Factor on metal plate with thickness 1mm at temperature less than +20ºС	0.6	EVALUATION
Fire risk, burning rate	Non-flammable, <100mm/min	ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off	>9.7N/cm	ISO 813:2010
Operating Temp. Range	-40 to +90°C
Max. Temp. Intermittent	150°C
Package weight	7.8kg +/-10%
Package volume	0.01451m³ +/-10%
