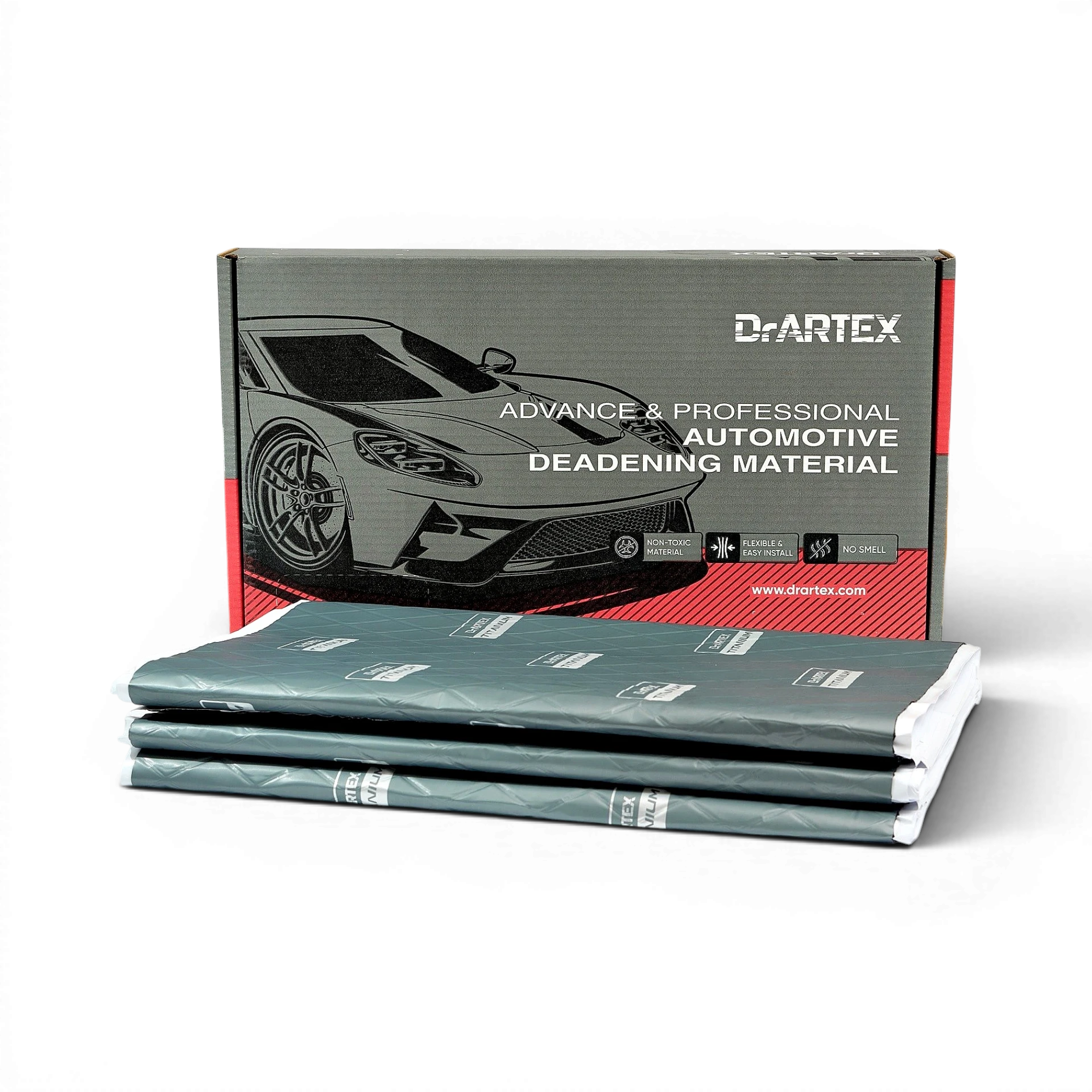

DrARTEX Titanium (2.2mm, 2026)

Catalog product
Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.
Ask About This Product Official Store & Guide
DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.
Technical data

Specifications

Description

DrARTEX Titanium is a medium-class Earth Line vibration damper for balanced first-layer control on doors, roofs, boot and bonnet lids, and fenders.

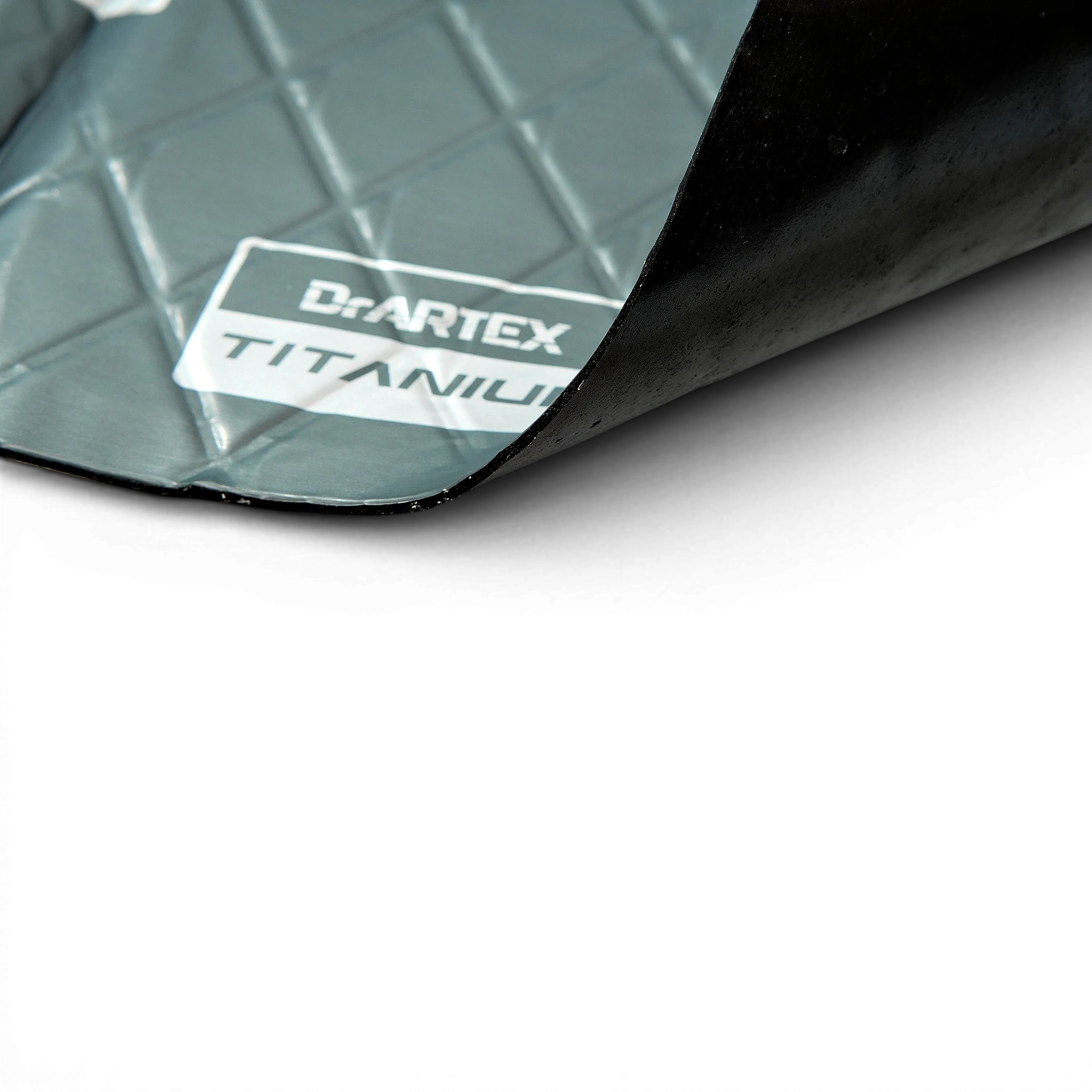

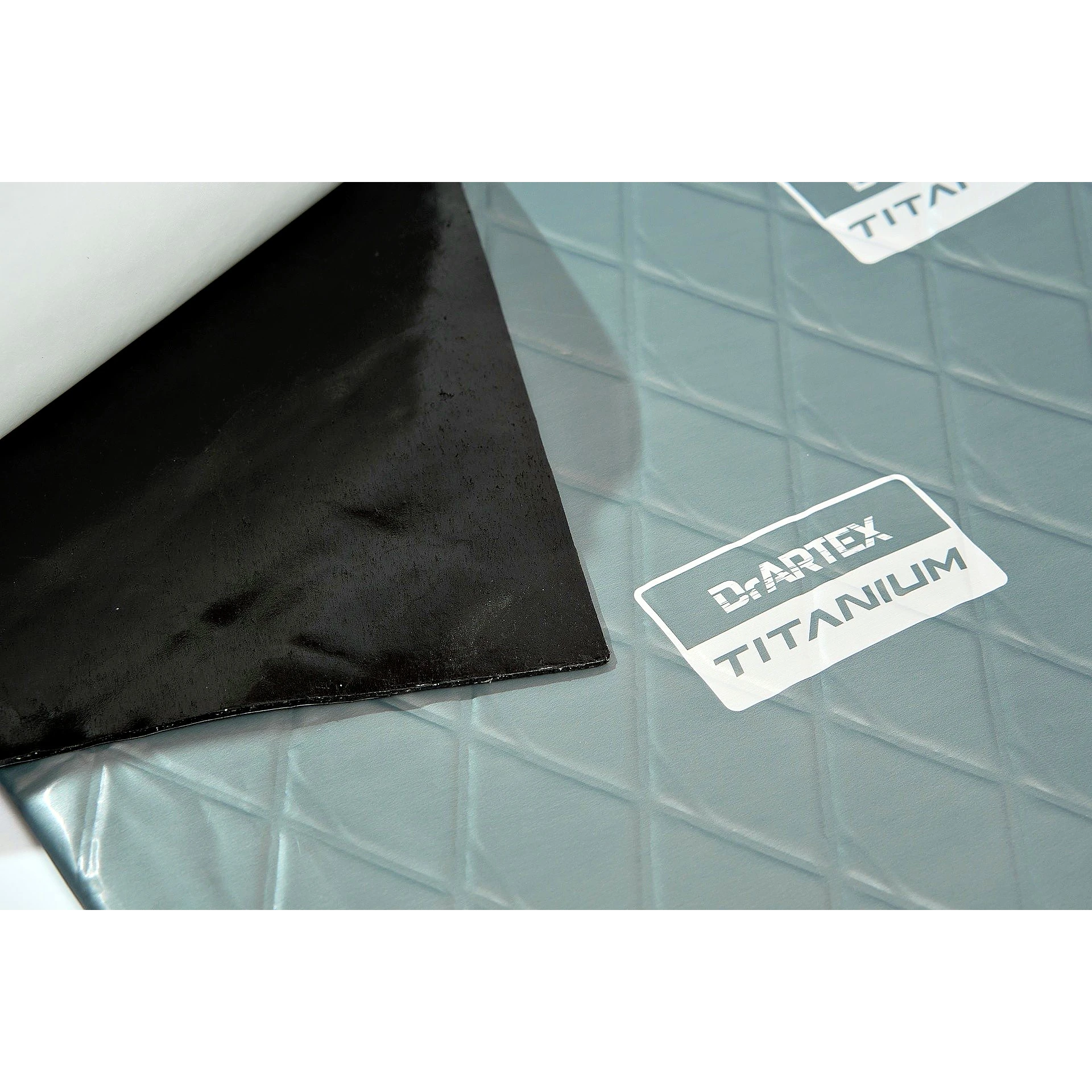

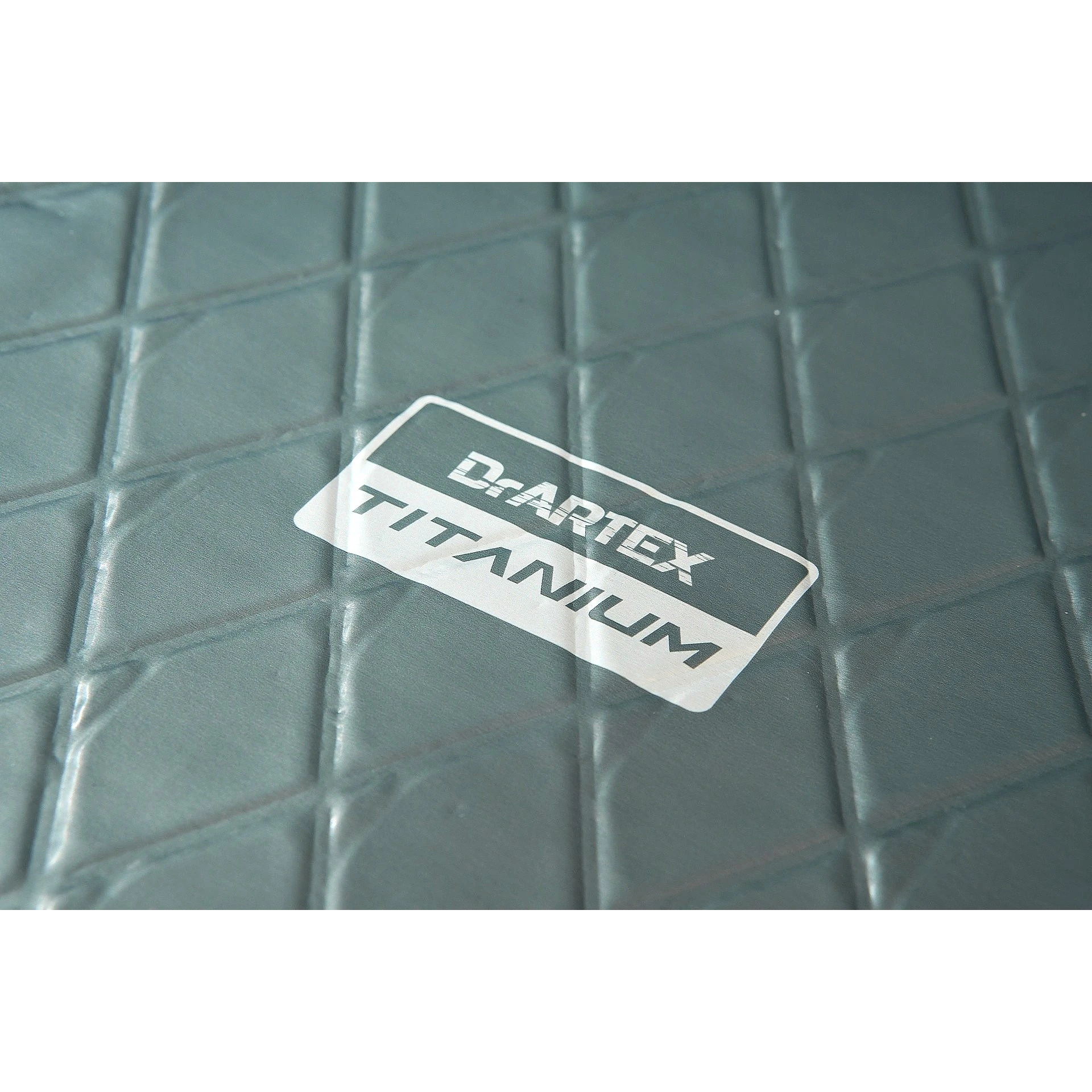

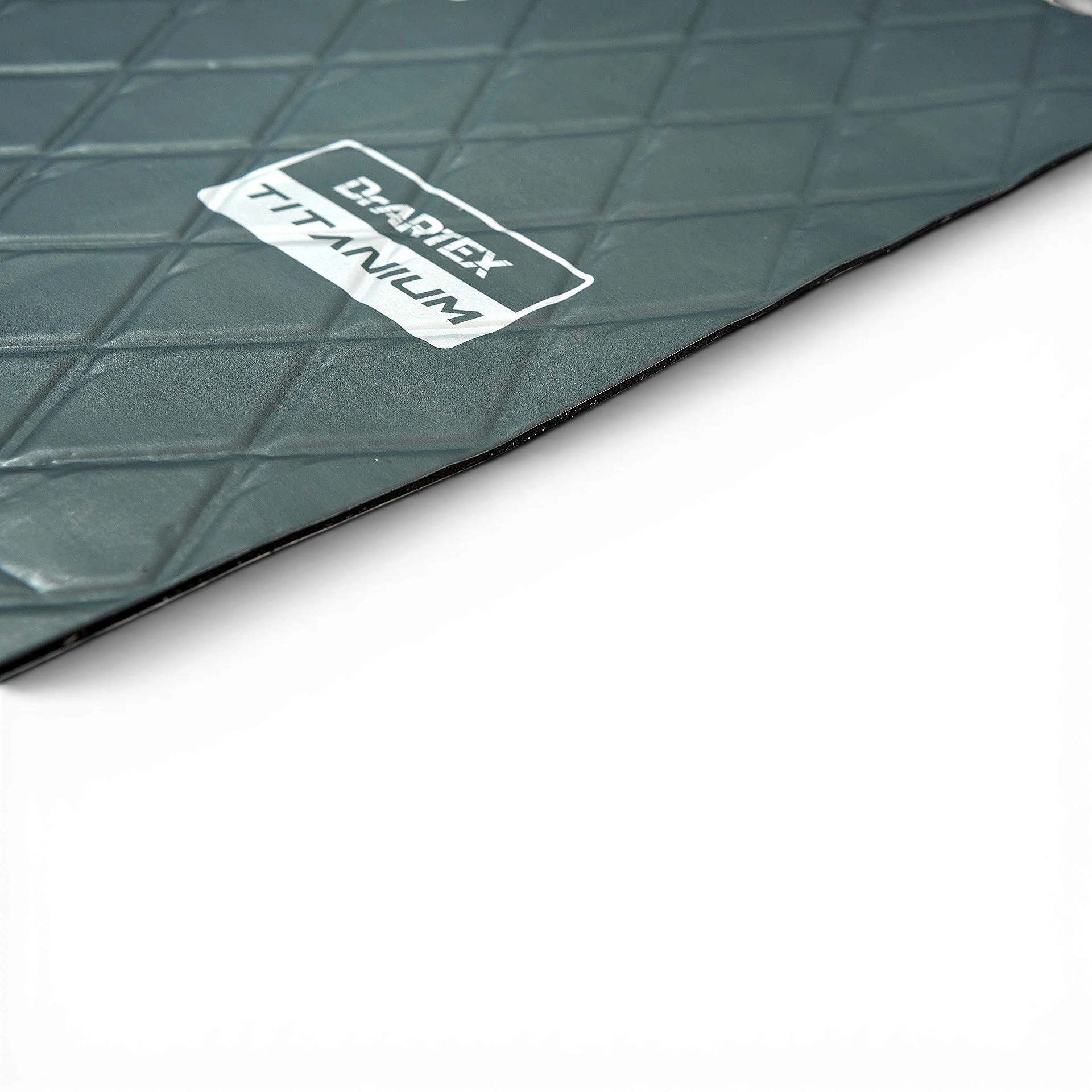

The updated model uses VIPER mastic for very high adhesive strength and consistent damping across a wide temperature range. Its semi-annealed, semi-hard aluminum foil uses a print finish designed to maintain integrity when rolled, while the no-bitumen construction supports a cleaner, more flexible installation.

Application

The material is installed at dry clean painted metal surface. Temperature in workroom must be from +18 to +30°С. Material is released from protective tint and is pressed carefully to work surface. Care should be taken to avoid air chambers in the material, which admit moisture and reduce insulation properties.
Do not install material on the dirty and on the corroded metal surface.

Storage

Products stored in a room at a temperature no higher than +40°C in the horizontal position on a flat surface at a distance of not less than 1 meter from the heating system in the conditions excluding moisture, oils and direct sunlight, stacked no more than 1 meter in height.

Name of index Value Testing method
Sheets per Package 9
Sheet Length 70cm
Sheet Width 50cm
Total Sheet Area 3.15m²
Package Contents 9 sheets 70x50cm
Mastic VESPA
Dimension (W*L*H) 70 x 50cm per sheet

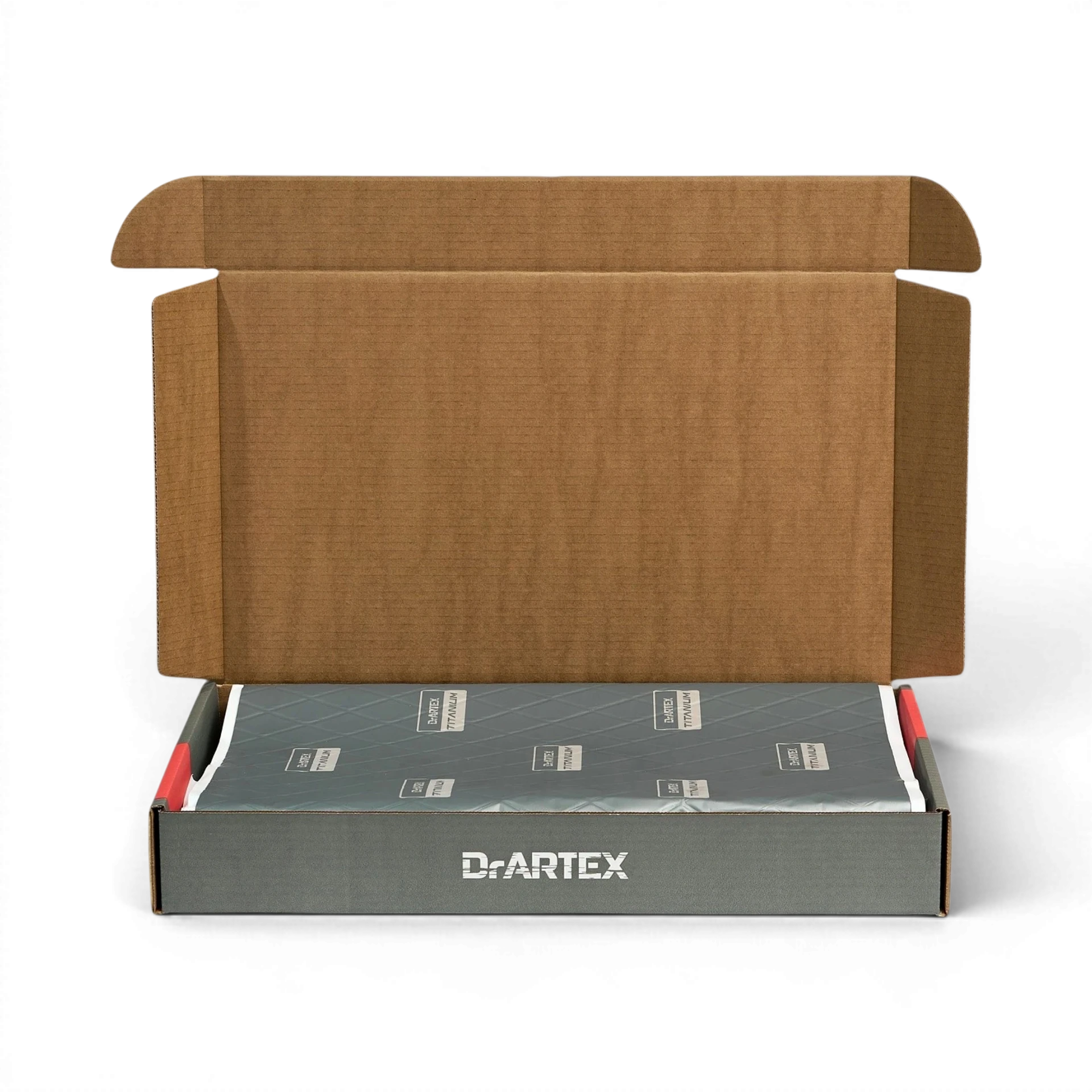

Packaging Type Corrugated cardboard carton
Package Dimension (W*L*H) 55.5 x 33.1 x 7.9cm
Foil hardness or temper stated by the manufacturer. Semi-hard
Material Thickness 2.2mm GOST 17073-71
Foil (Outer) Thickness 80µm +/-5% GOST 17073-71
Mass per m² 2.7kg +/-10% GOST 17073-71
Mechanical Loss Factor on metal plate with thickness 1mm at temperature less than +20ºС >0.27 DIN EN ISO 6721- 3:1994 (method-А)
Fire risk, burning rate Non-flammable, <100mm/min ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off >9.4N/cm ISO 813:2010
Operating Temp. Range -40 to +90°C
Max. Temp. Intermittent 150°C
Package weight 11.8kg +/-10%
Package volume 0.01451m³ +/-10%
