DrARTEX Gold HD (2.5mm, 2026)

Available variants

Catalog product
Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.
Ask About This Product Official Store & Guide
DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.
Technical data

Specifications

Description

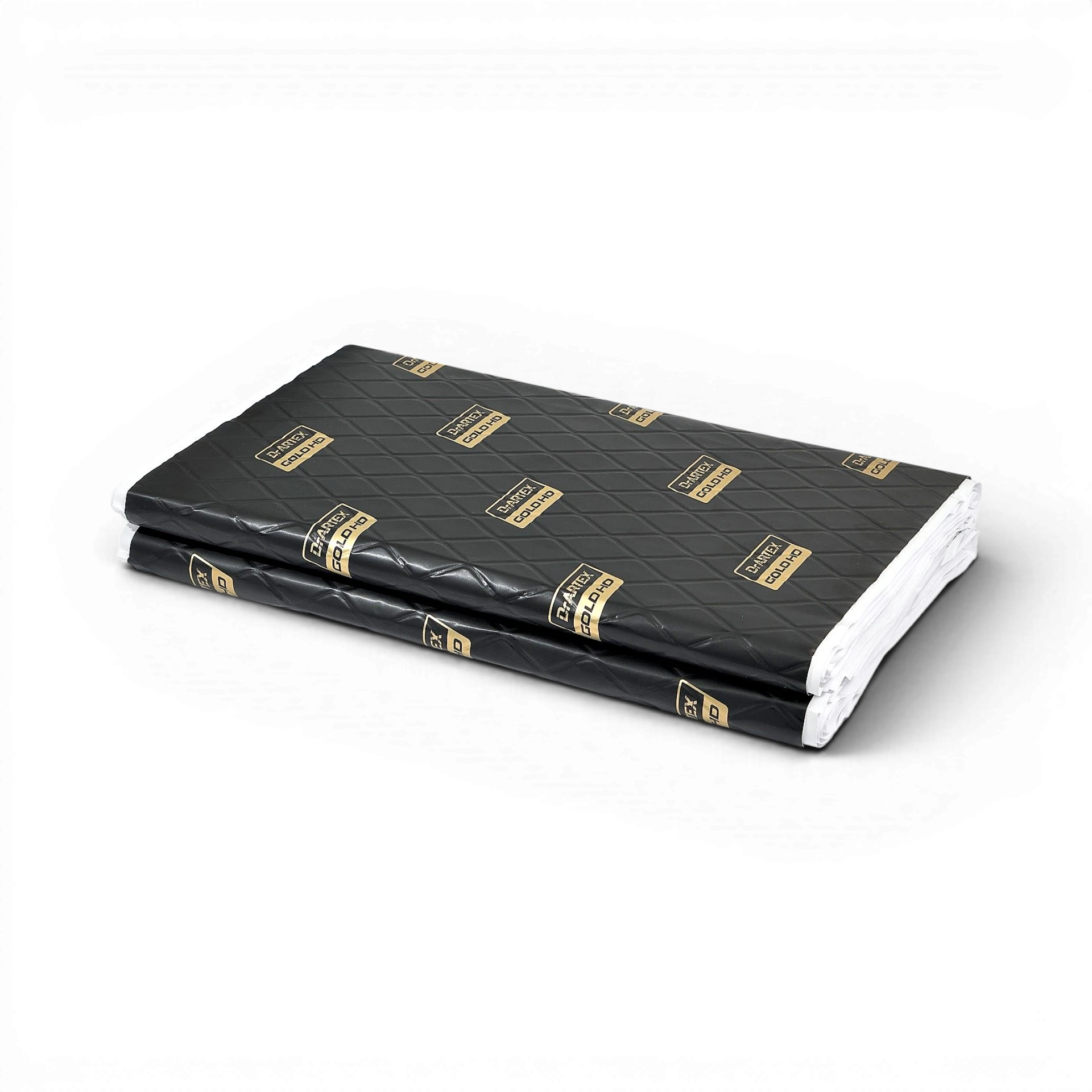

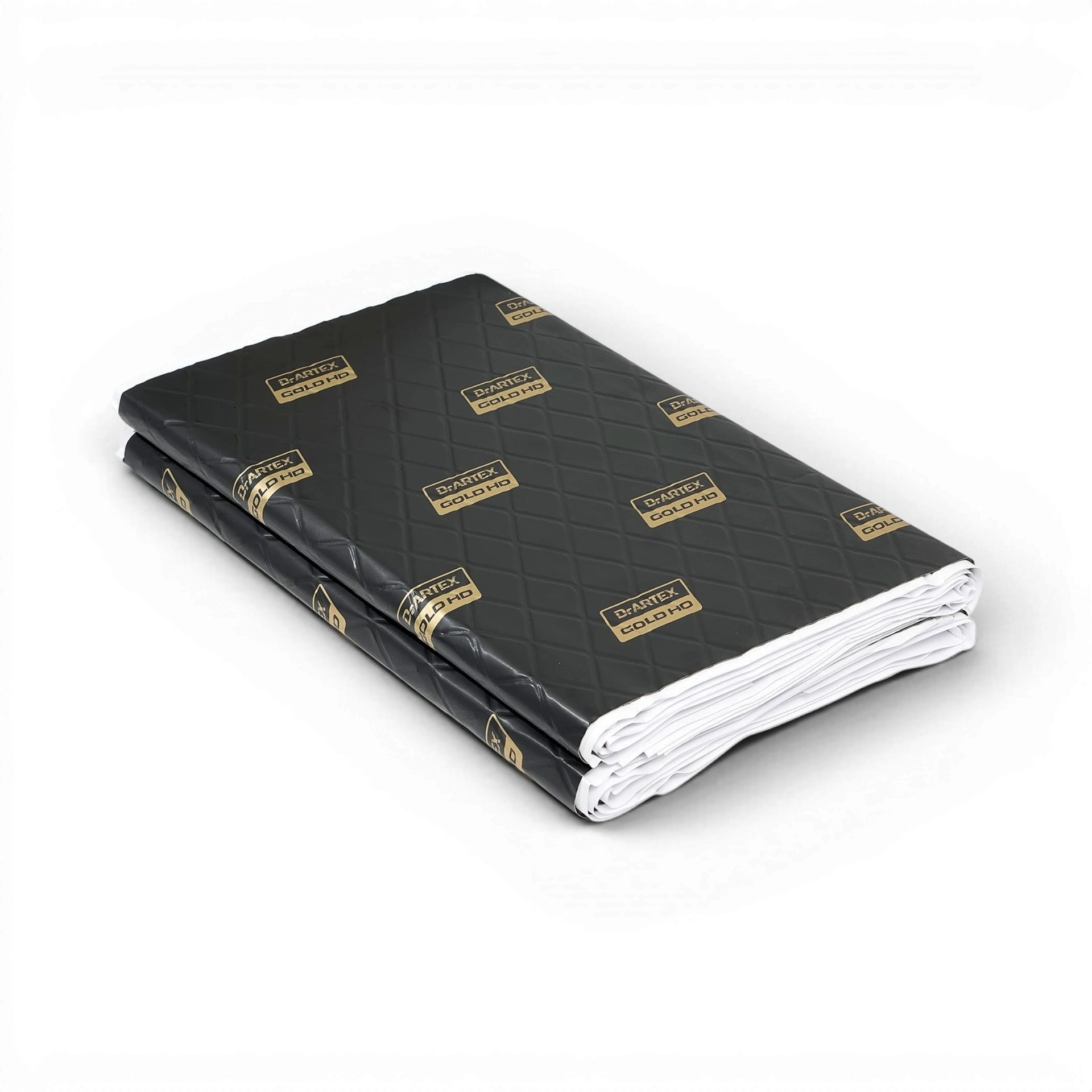

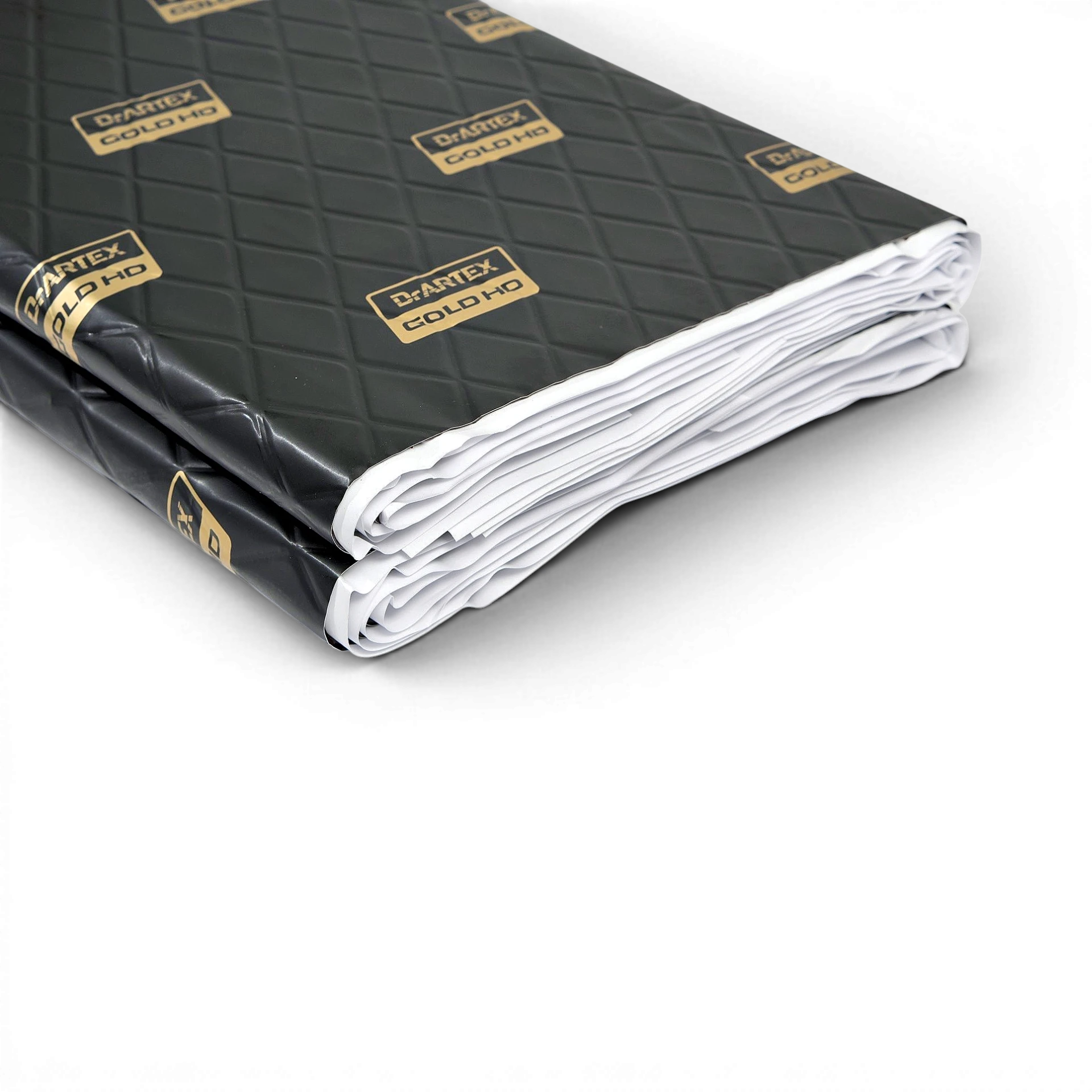

DrARTEX Gold HD is the heavy-class Earth Line vibration damper for stronger first-layer control on firewalls, floors, and wheel arches.

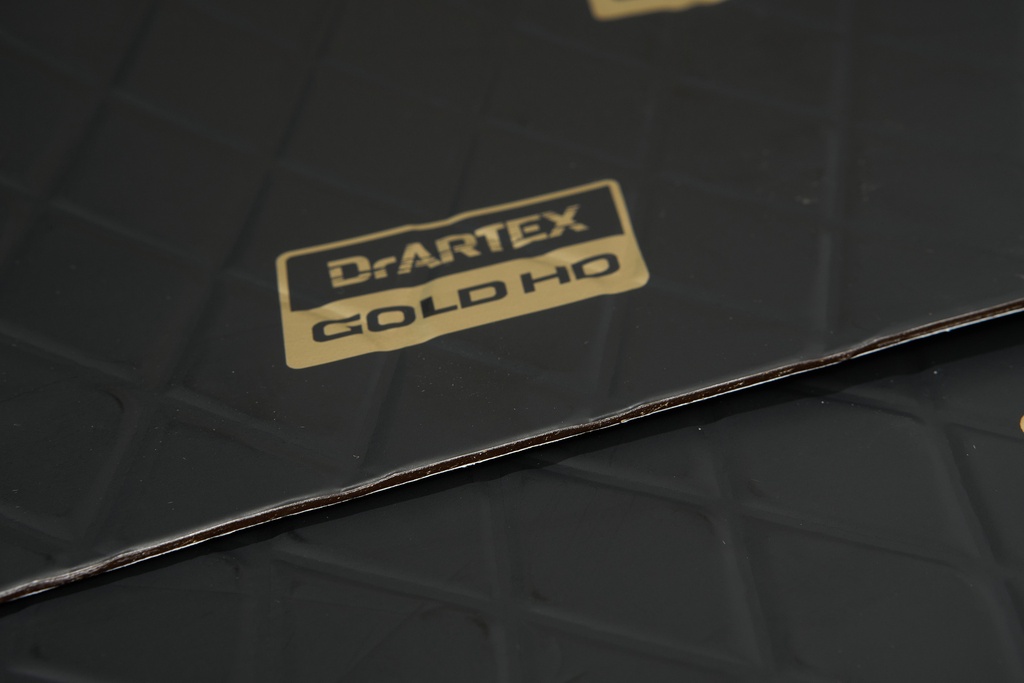

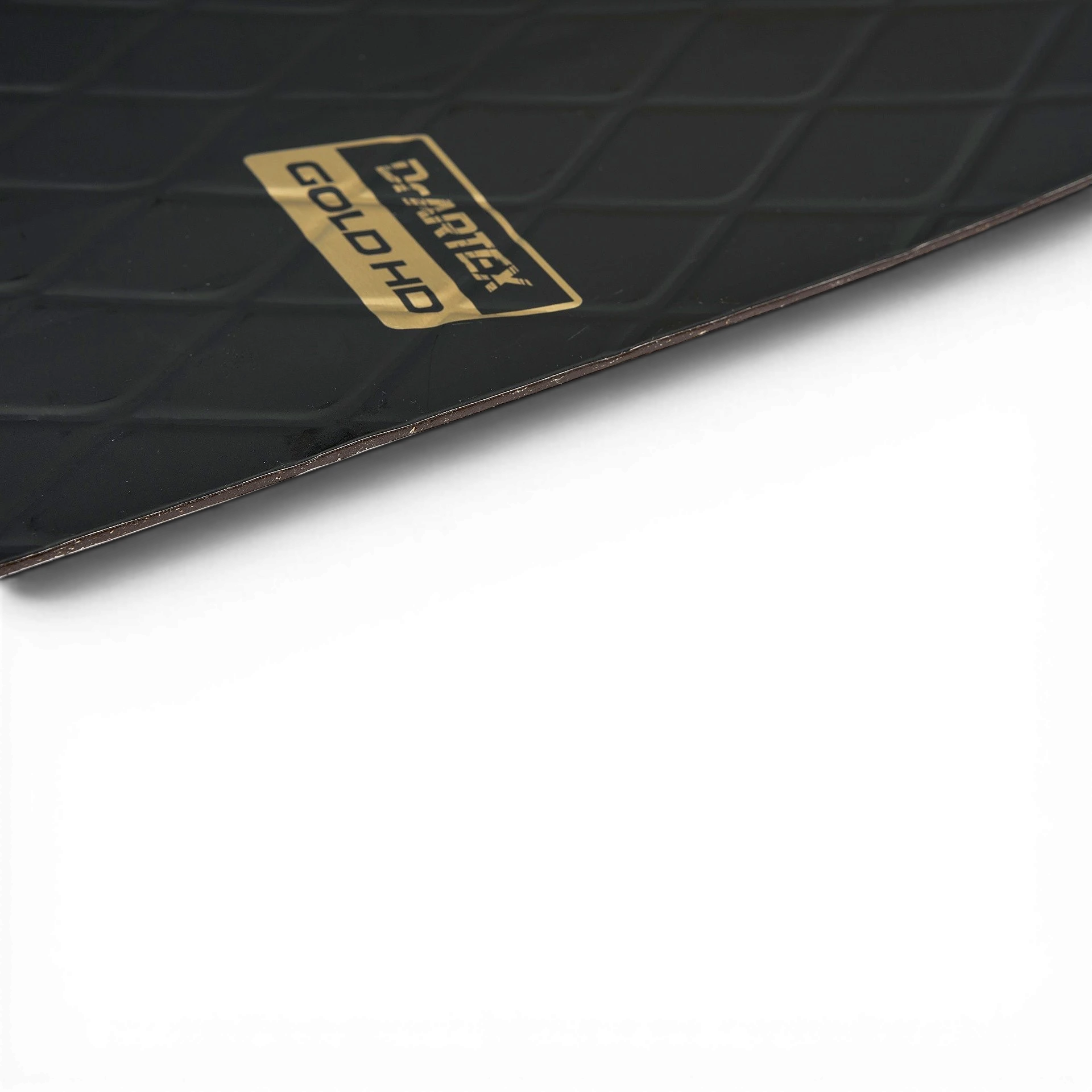

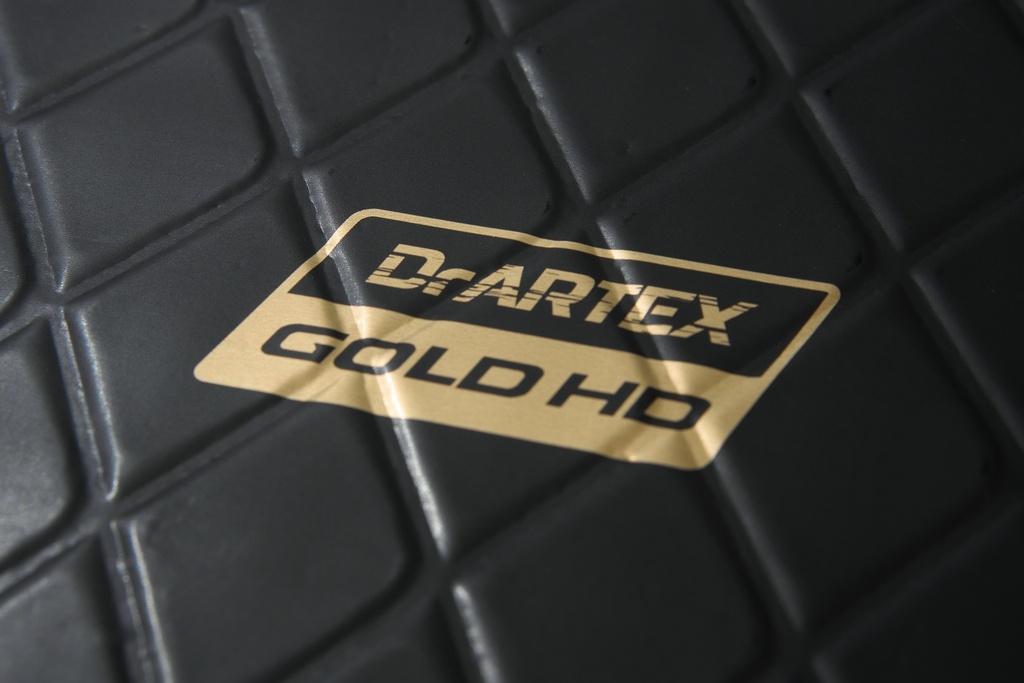

The updated model uses VIPER mastic for very high adhesive strength and consistent damping across a wide temperature range. Its 100 micron semi-annealed, semi-hard aluminum foil uses a print finish designed to maintain integrity when rolled, while the no-bitumen construction supports a cleaner, more flexible installation.

This variant uses a more compact sheet format for straightforward handling and coverage planning.

Application

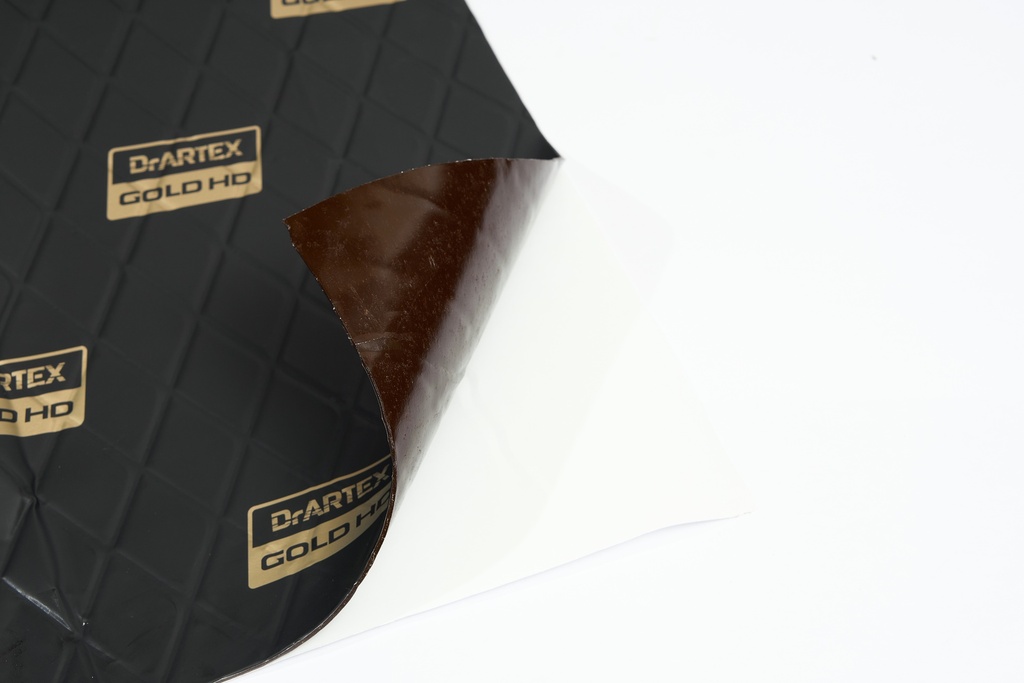

The material is installed at dry clean painted metal surface. Temperature in workroom must be from +18 to +30°С. Material is released from protective tint and is pressed carefully to work surface. Care should be taken to avoid air chambers in the material, which admit moisture and reduce insulation properties.
Do not install material on the dirty and on the corroded metal surface.

Storage

Products stored in a room at a temperature no higher than +40°C in the horizontal position on a flat surface at a distance of not less than 1 meter from the heating system in the conditions excluding moisture, oils and direct sunlight, stacked no more than 1 meter in height.

Name of index Value Testing method
Sheets per Package 8
Sheet Length 70cm
Sheet Width 50cm
Total Sheet Area 2.8m²
Package Contents 8 sheets 70x50cm
Dimension (W*L*H) 70 x 50cm per sheet

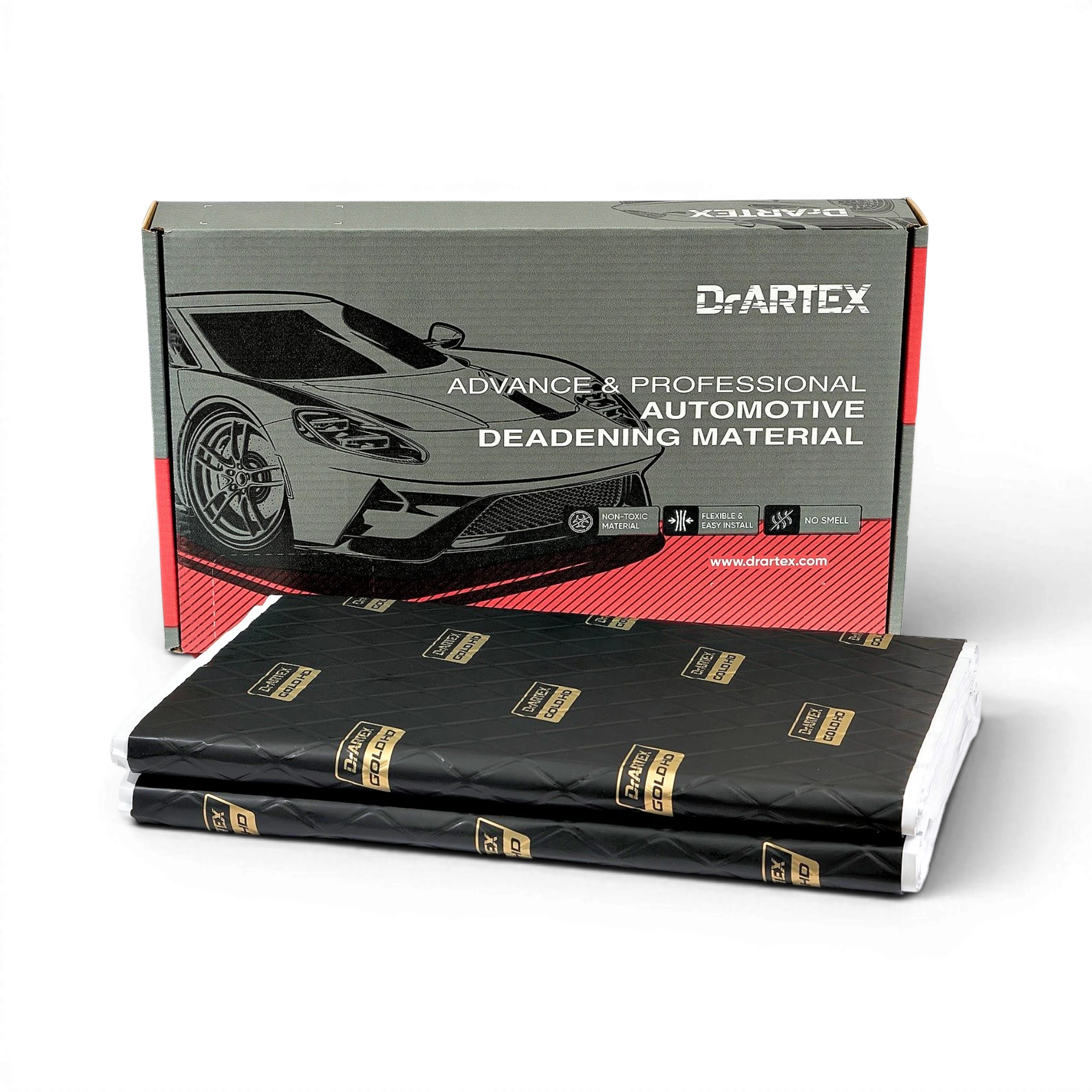

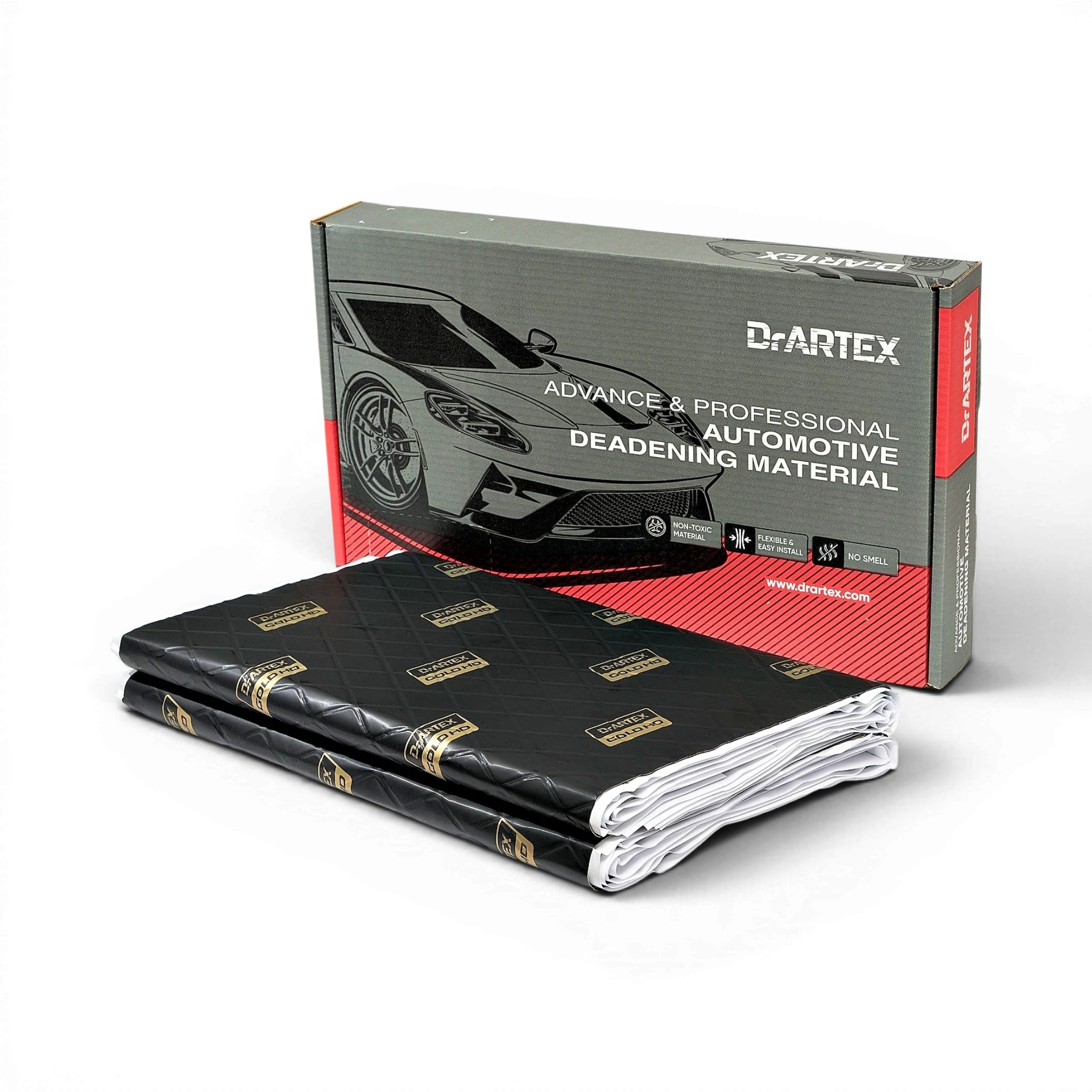

Packaging Type Corrugated cardboard carton
Package Dimension (W*L*H) 55.5 x 33.1 x 7.9cm
Foil hardness or temper stated by the manufacturer. Semi-hard
Material Thickness 2.5mm GOST 17073-71
Fire risk, burning rate Non-flammable, <100mm/min ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off >6N/cm ISO 813:2010
Operating Temp. Range -40 to +90°C
Max. Temp. Intermittent 150°C
Package weight 11.9kg +/-10%
Package volume 0.01451m³ +/-10%
