DrARTEX EV Silver (2.5mm, 2026)

Available variants

Catalog product
Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.
Ask About This Product Official Store & Guide
DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.
Technical data

Specifications

Description

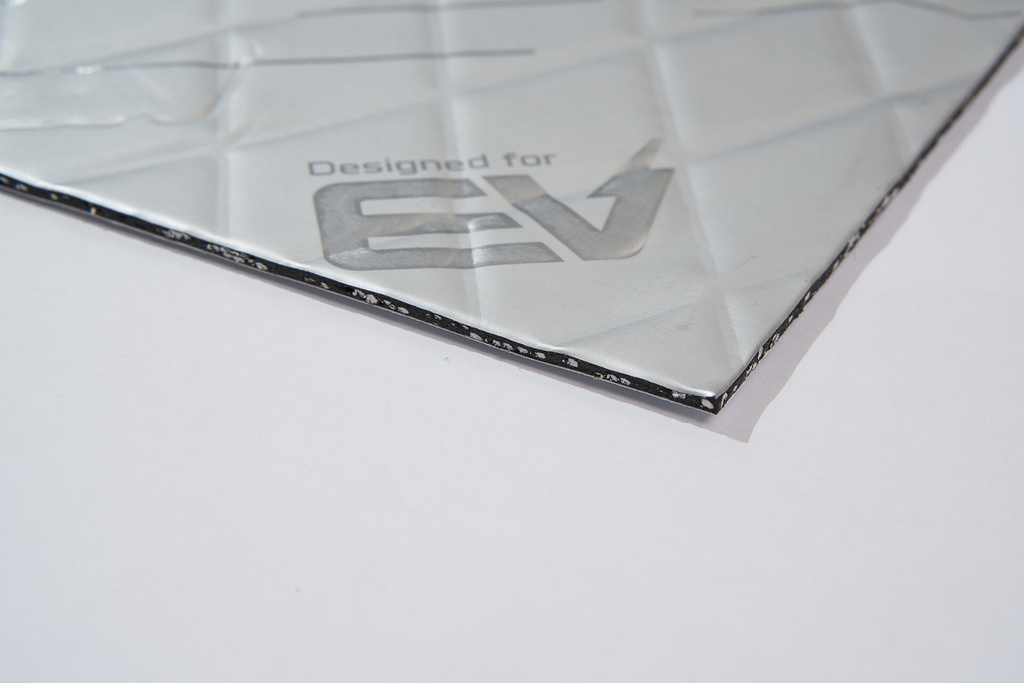

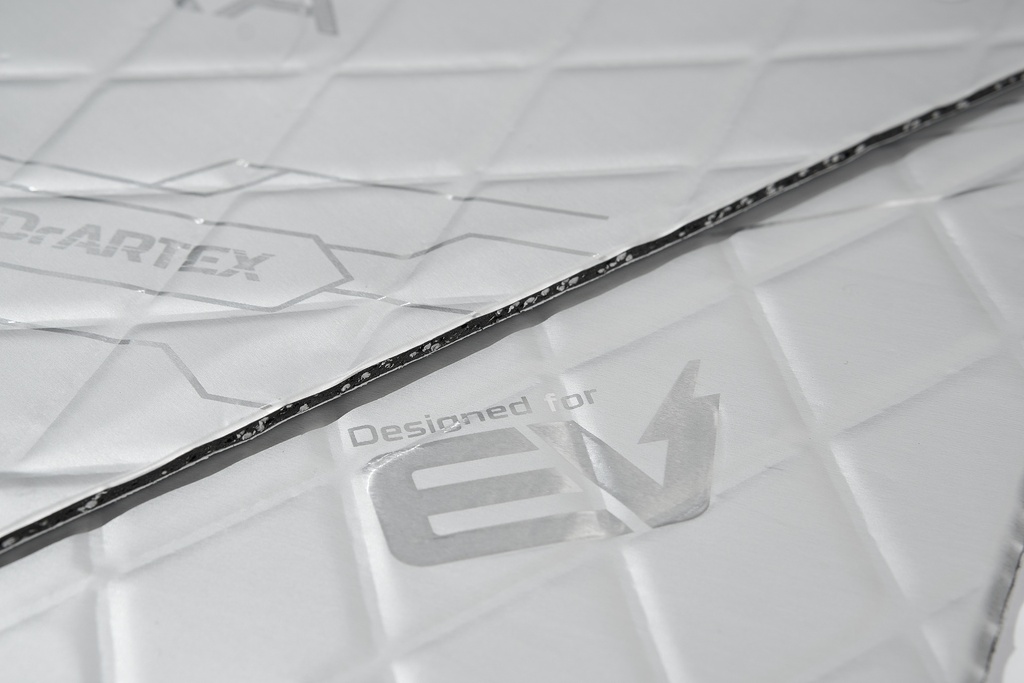

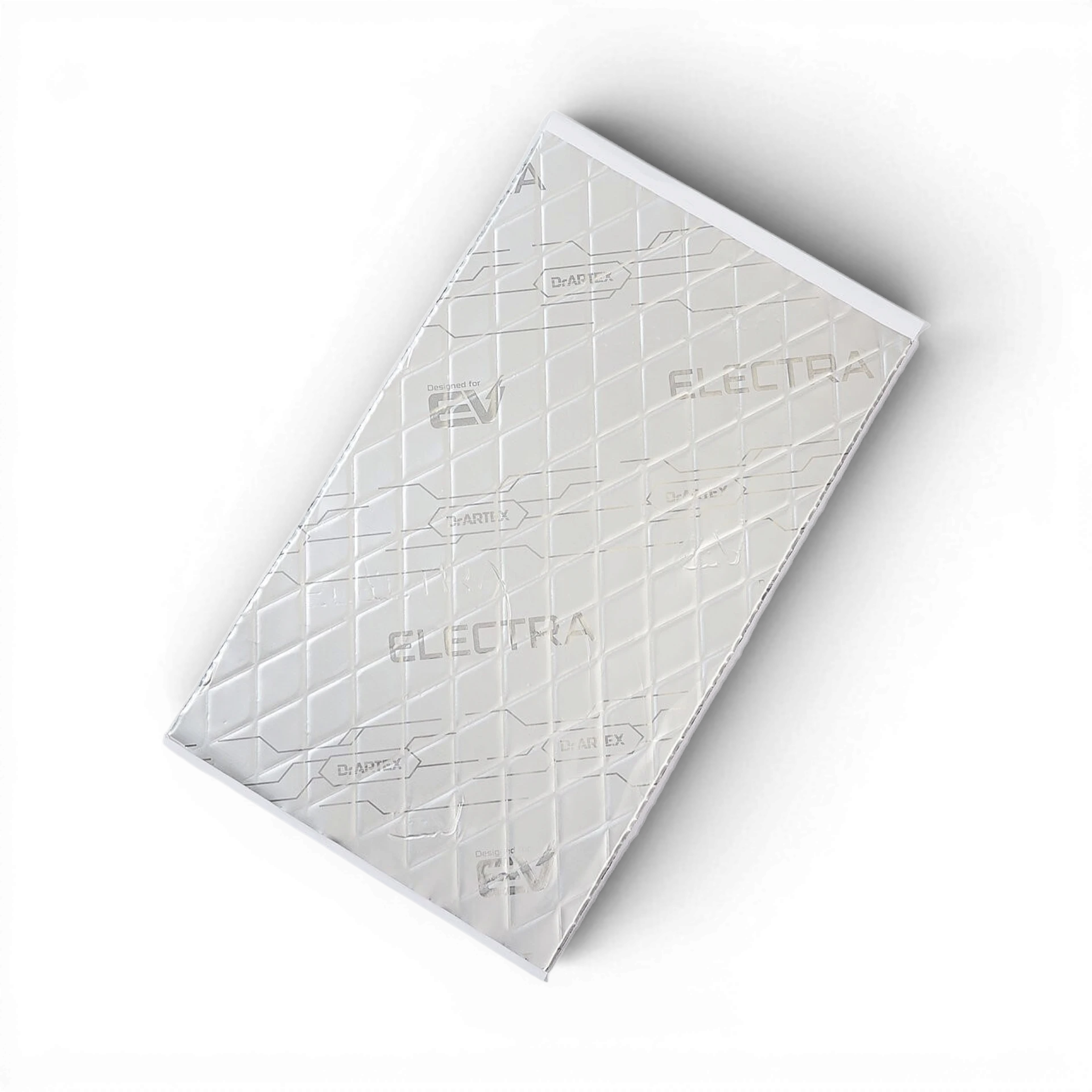

DrARTEX EV Silver is an ultra-light first-layer vibration damper for EV doors, roofs, fenders, trunks, and trunk lids, where added mass directly affects vehicle efficiency.

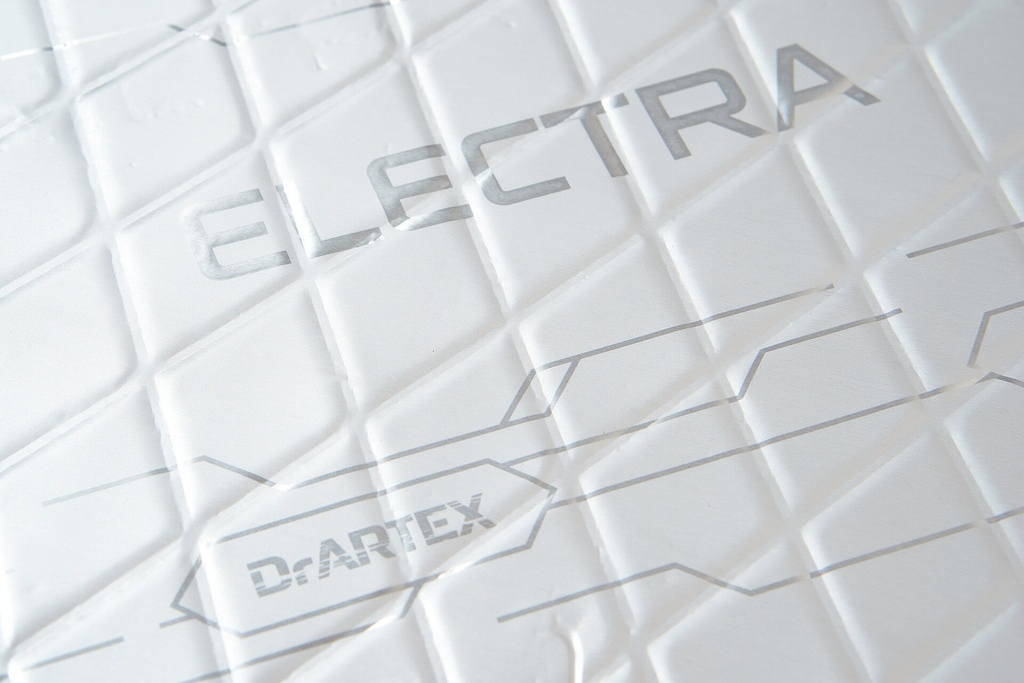

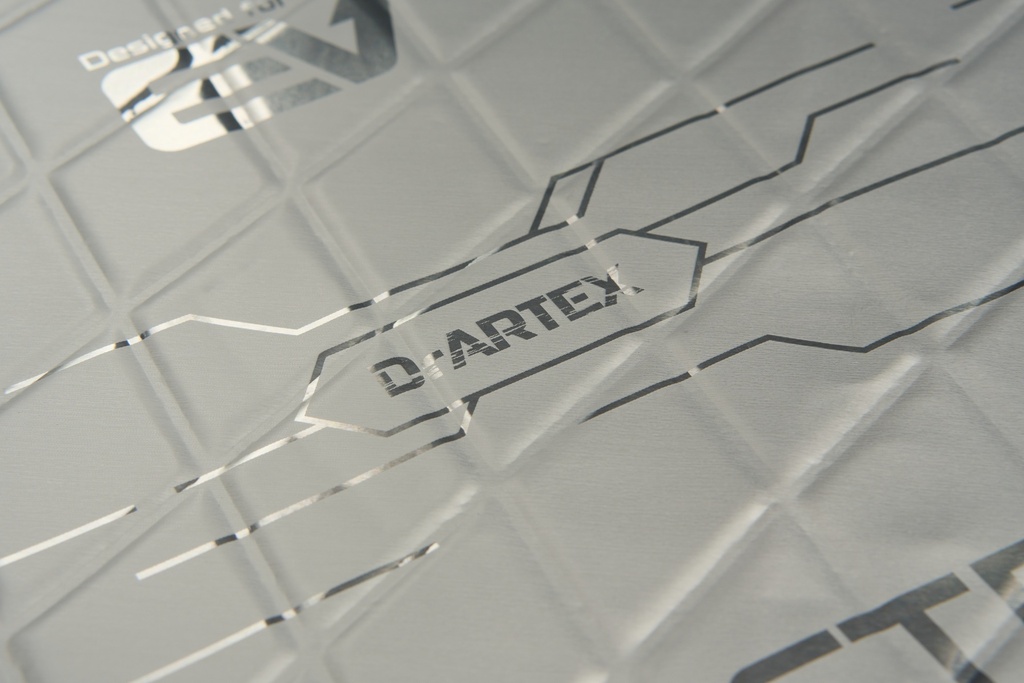

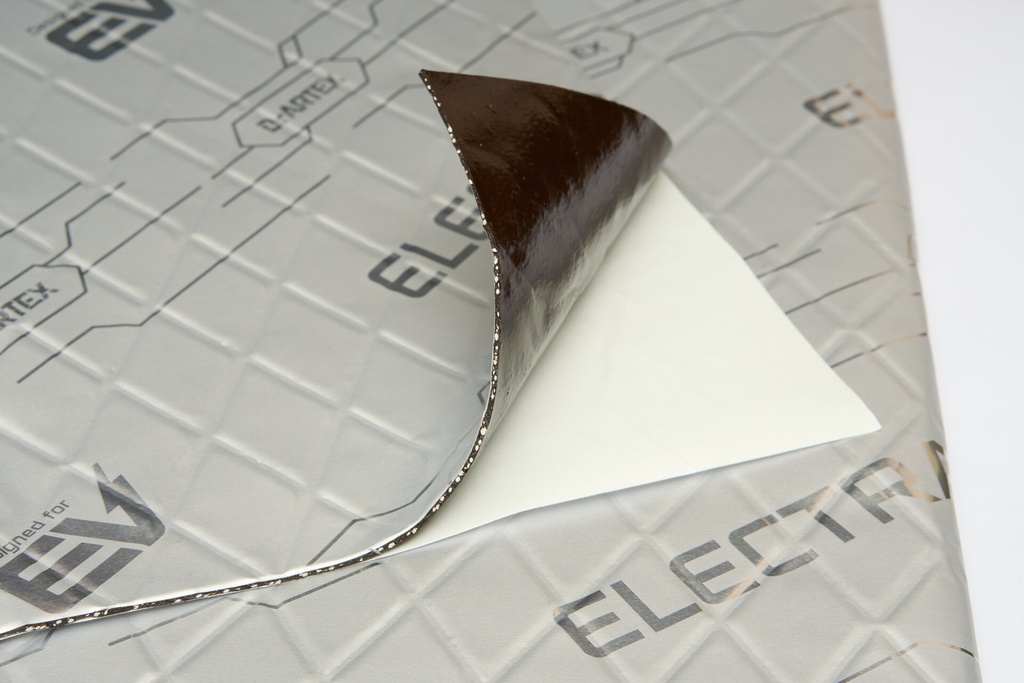

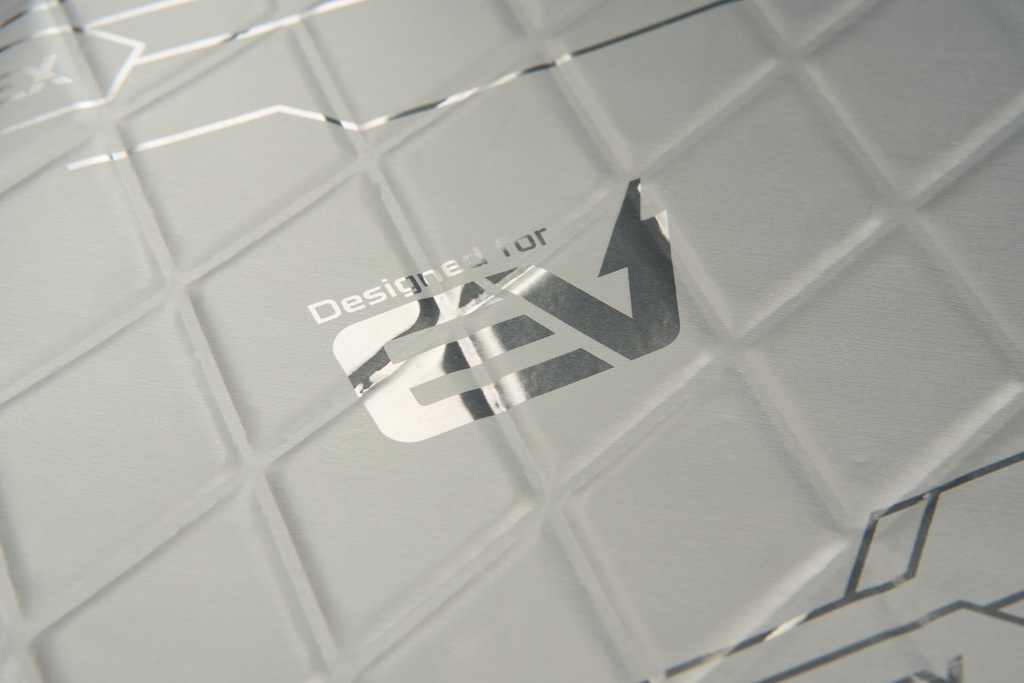

Its ASRM technology uses aero granules in the mastic to reduce density while maintaining strong damping, adhesion, and a wide effective frequency range. A semi-annealed, semi-hard aluminum foil supports clean installation, while the no-bitumen construction avoids odor and dirty hands.

This variant uses a more compact sheet format for straightforward handling and coverage planning.

Name of index Value Testing method
Material Thickness 2.5mm
Density 0.8
Sheets per Package 8
Sheet Length 70cm
Sheet Width 50cm
Total Sheet Area 2.8m²

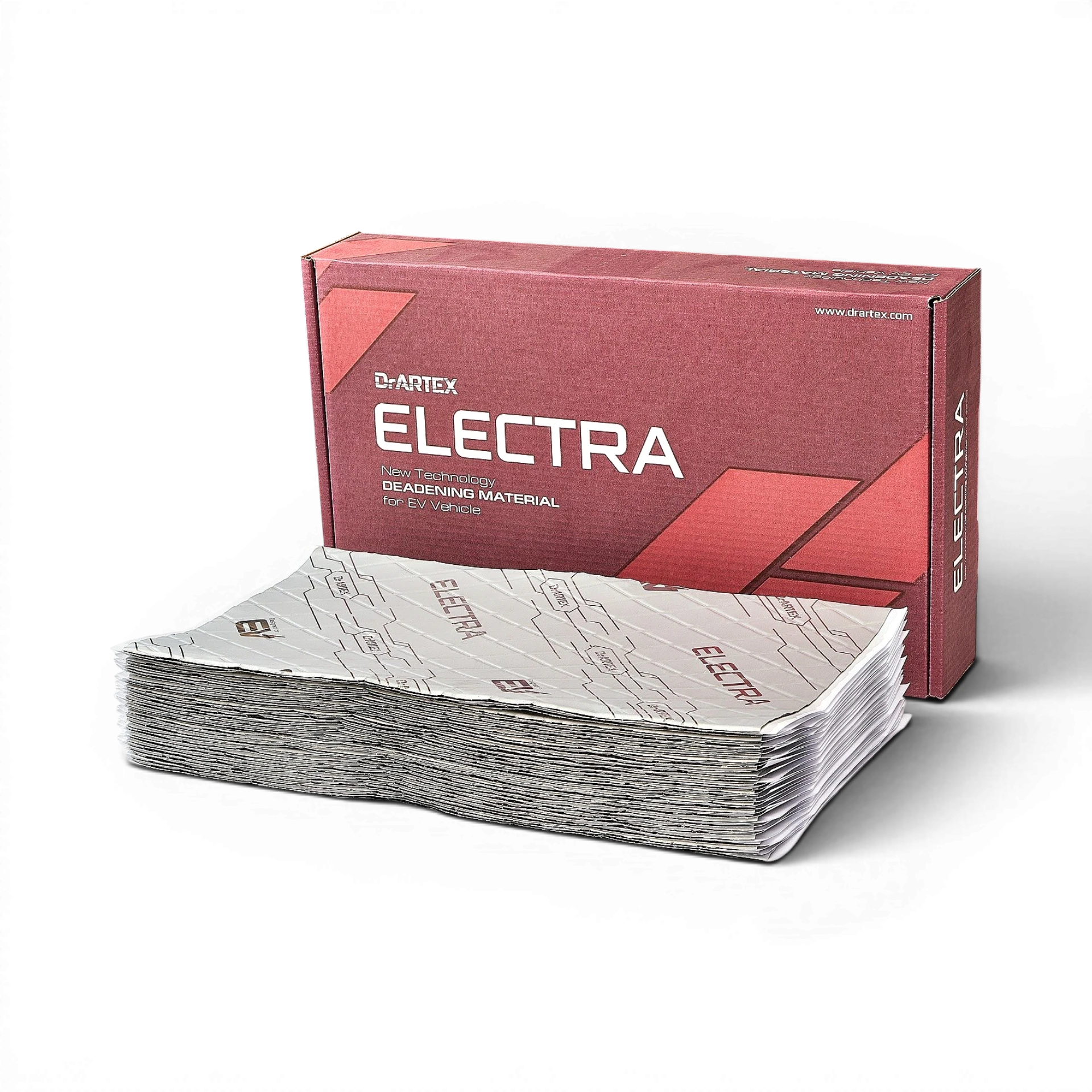

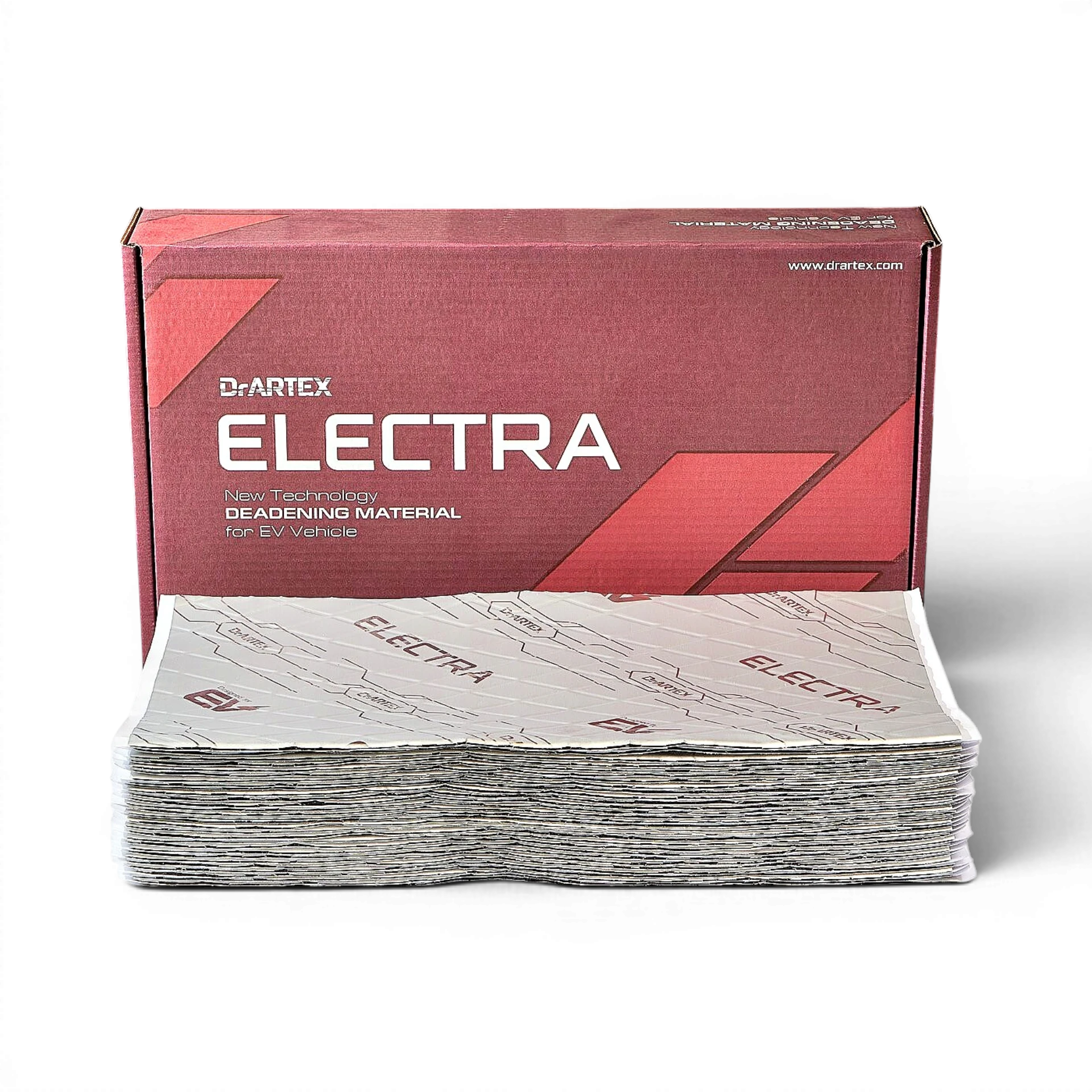

Package Contents 8 sheets 70x50cm
Mastic AEROSPACE
Dimension (W*L*H) 70 x 50cm per sheet

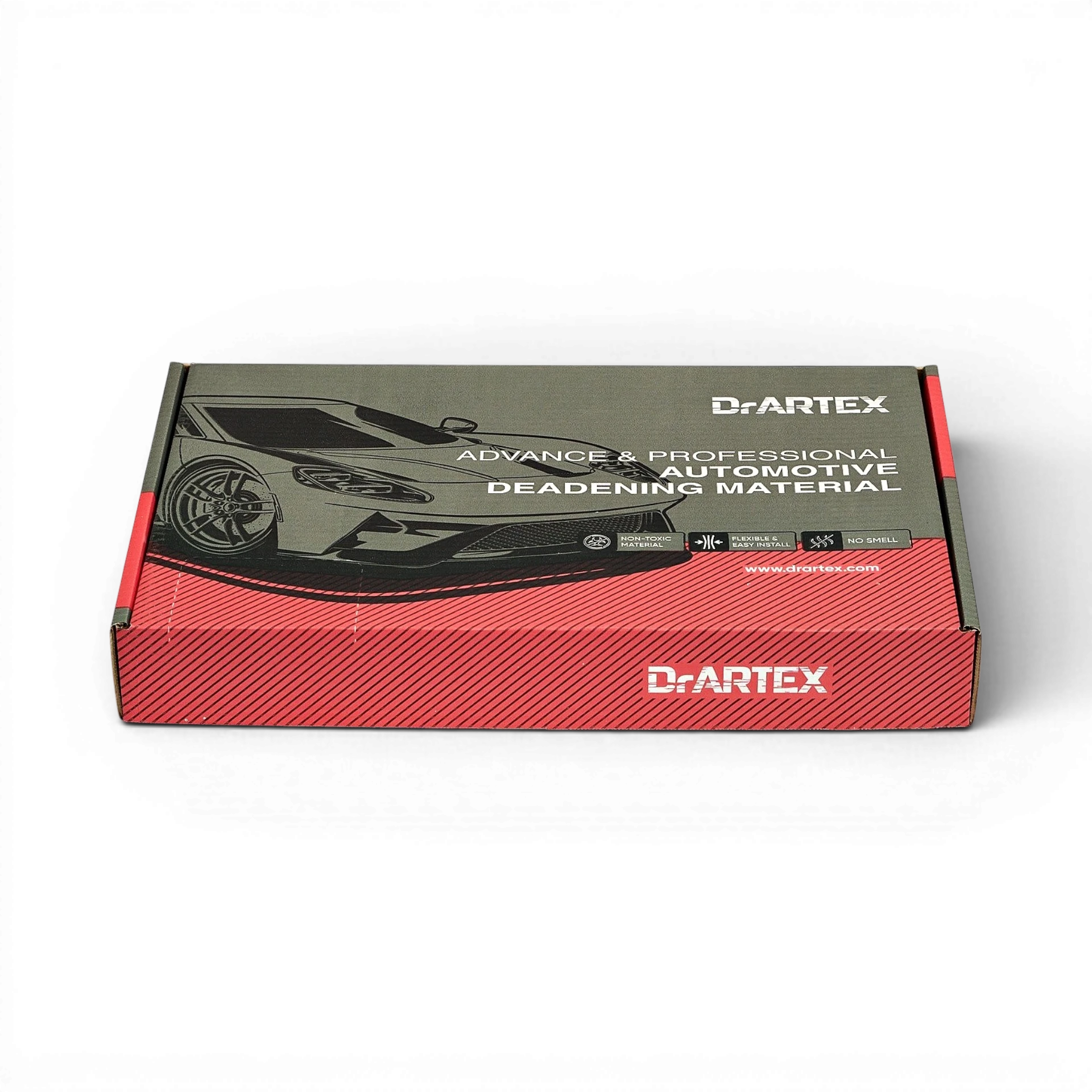

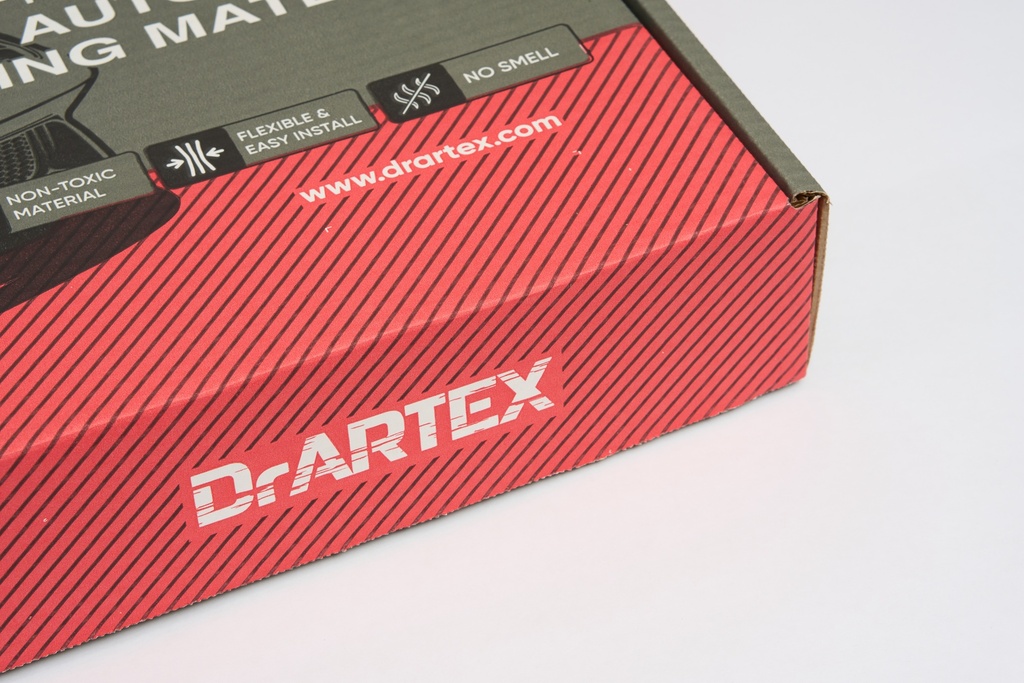

Packaging Type Corrugated cardboard carton
Package Dimension (W*L*H) 55.5 x 33.1 x 7.9cm
Foil (Outer) Thickness 100µm +/-10% GOST 17073-71
Mechanical Loss Factor on metal plate with thickness 1mm at temperature less than +20ºС >0.35
Fire risk, burning rate Non-flammable, <100mm/min ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off > 9.5N/cm ISO 813:2010
Operating Temp. Range -40 to +90°C
Max. Temp. Intermittent 150°C
Package weight 8.3kg +/-10%
Package volume 0.01451m³ +/-10%
