DrARTEX EV Green (9mm, 2026-B)

Available variants

Catalog product
Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.
Ask About This Product Official Store & Guide
DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.
Technical data

Specifications

Description

DrARTEX EV Green is the heavy multilayer Electra EV damper for floors and wheel arches, where tyre noise, road rumble, and cabin heat require more substantial control.

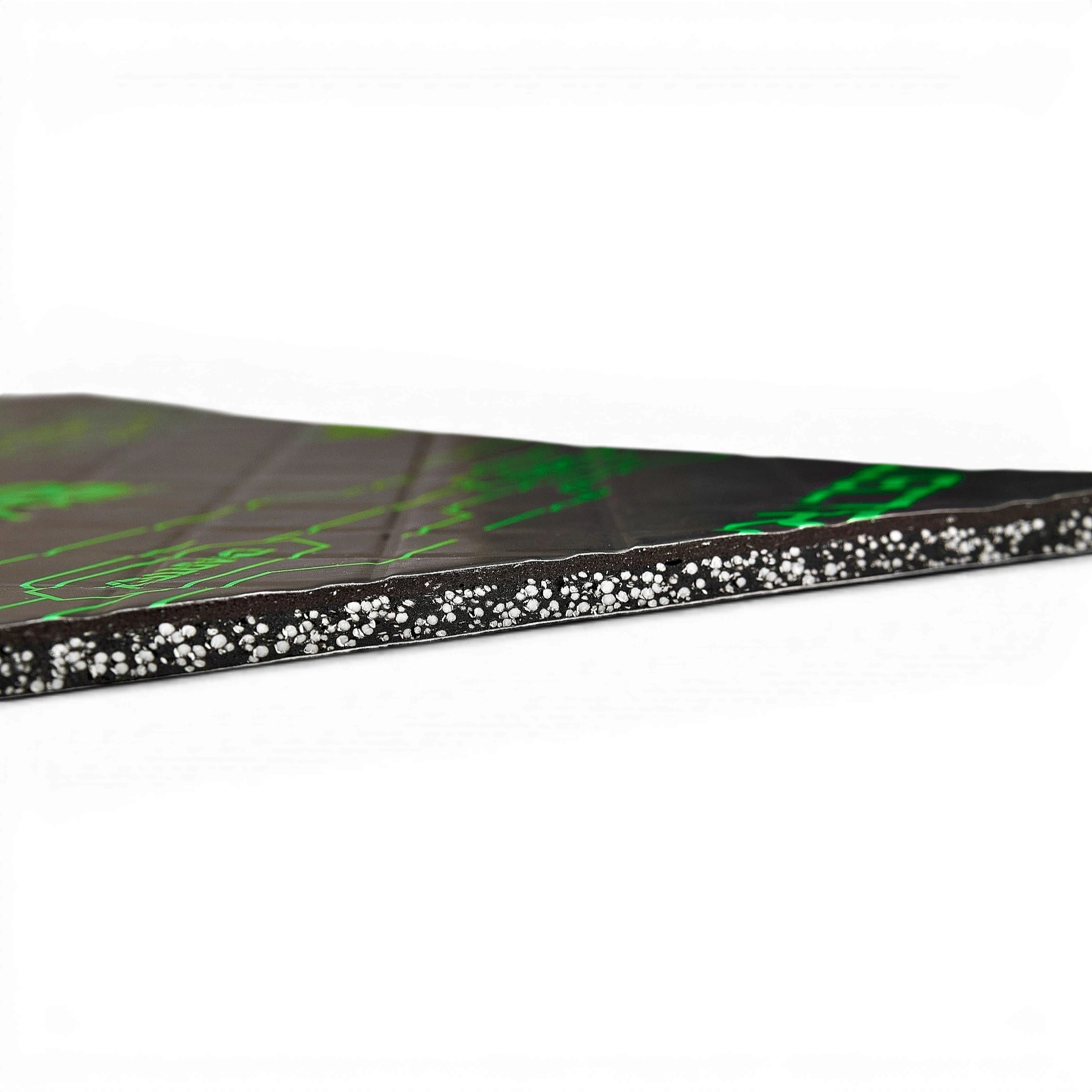

Its ASRM layer is combined with a heavy soundproofing membrane and aluminum foil to address vibration, sound insulation, and thermal comfort in one installed material. The layered construction is intended to deliver stronger floor and wheel-arch control without relying on a conventional heavy damping system alone.

This variant uses a more compact sheet format for controlled handling in floor and wheel-arch treatment.

Name of index Value Testing method
Density 0.99
Mastic AEROSPACE ROHS (EU) 2015/863
Material Thickness 9mm

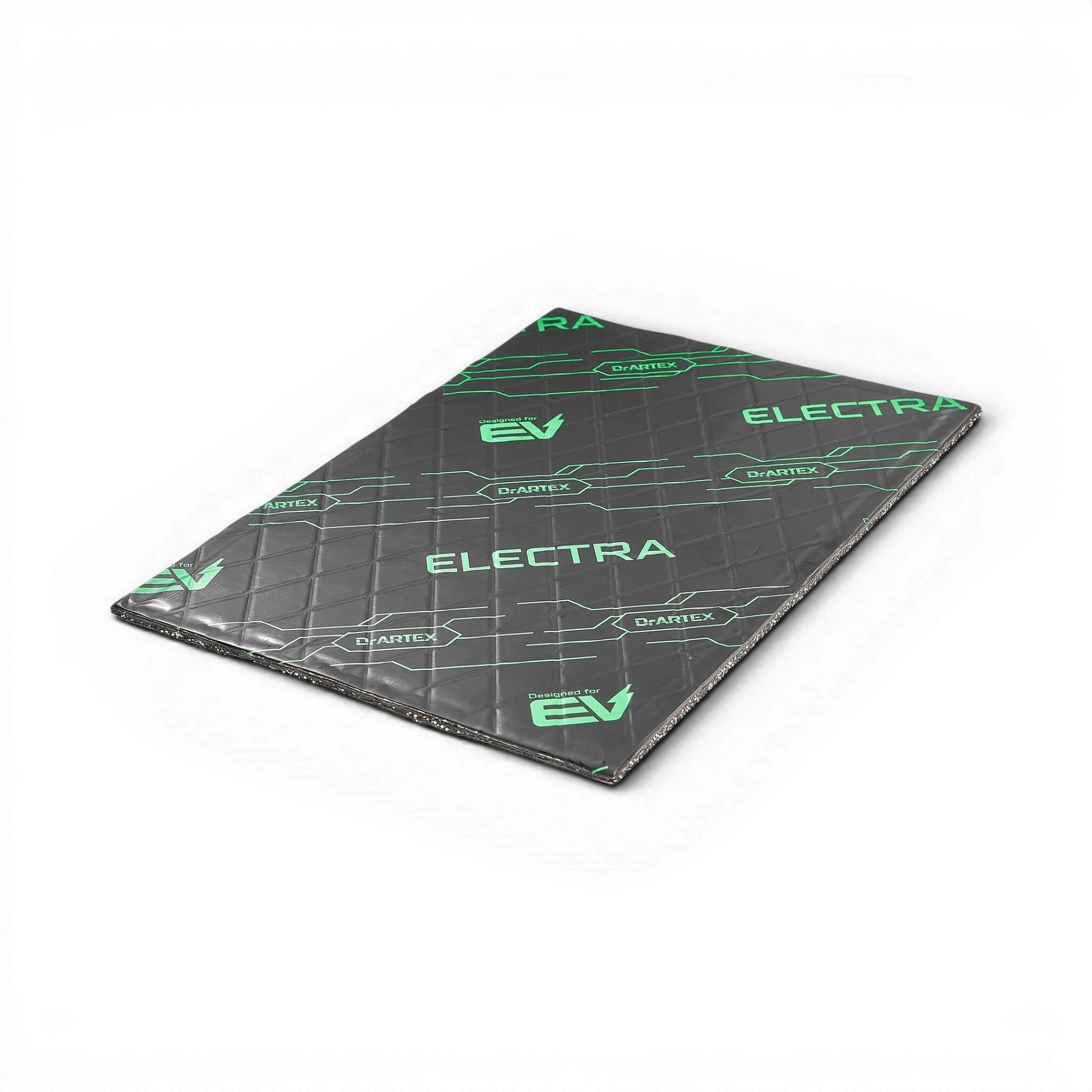

Dimension (W*L*H) 48 x 30cm per sheet
Sheets per Package 6
Sheet Length 48cm
Sheet Width 30cm
Total Sheet Area 0.864m²

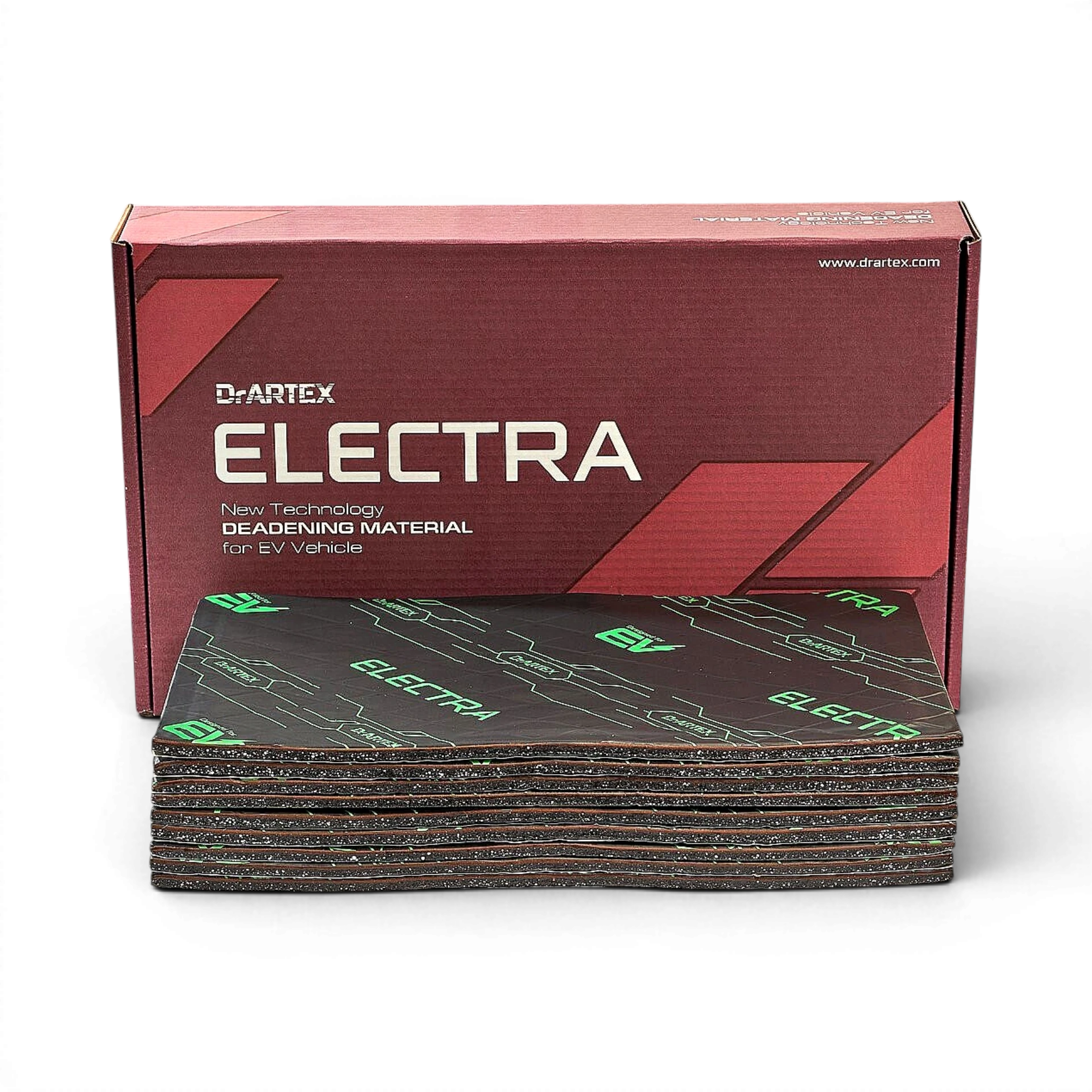

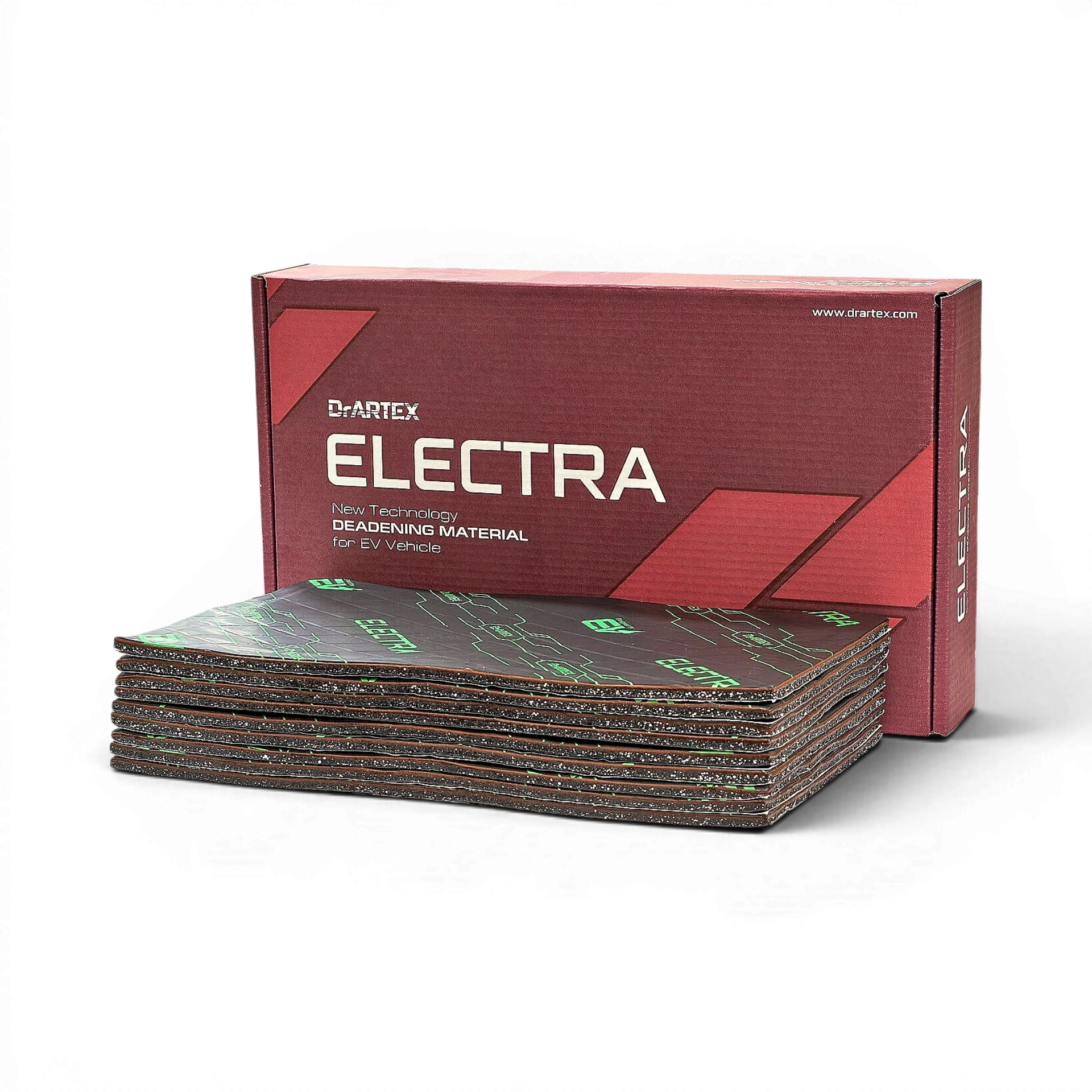

Package Contents 6 sheets 48x30cm
Packaging Type Corrugated cardboard carton
Package Dimension (W*L*H) 55.5 x 33.1 x 7.9cm
Foil (Outer) Thickness 100µm +/-10% GOST 17073-71
Mechanical Loss Factor on metal plate with thickness 1mm at temperature less than +20ºС 0.8 EVALUATION
Fire risk, burning rate Non-flammable, <100mm/min ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off 10.5N/cm ISO 813:2010
Operating Temp. Range -40 to +90°C
Max. Temp. Intermittent 150°C
Package weight 8.3kg +/-10%
Package volume 0.01451m³ +/-10%
