DrARTEX EV Black Band (10m, 1.3mm, 2025)

Catalog product

Prices, stock, and purchase options are handled by inquiry or through the official regional DrARTEX store path.

Ask About This Product Official Store & Guide

DrARTEX.com is a product catalog and inquiry site. Pricing, availability, and purchasing depend on country and channel.

Technical data

Specifications

Description

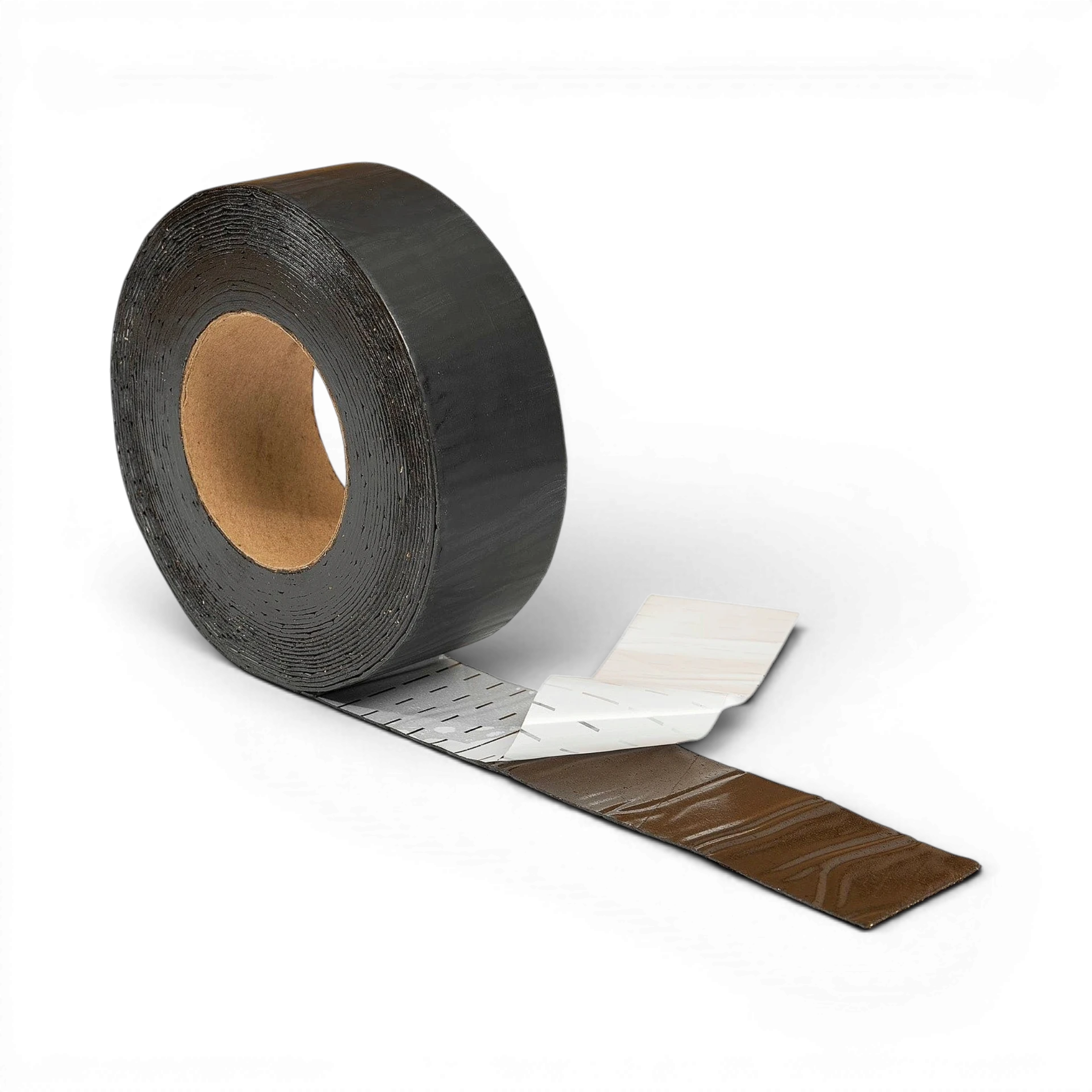

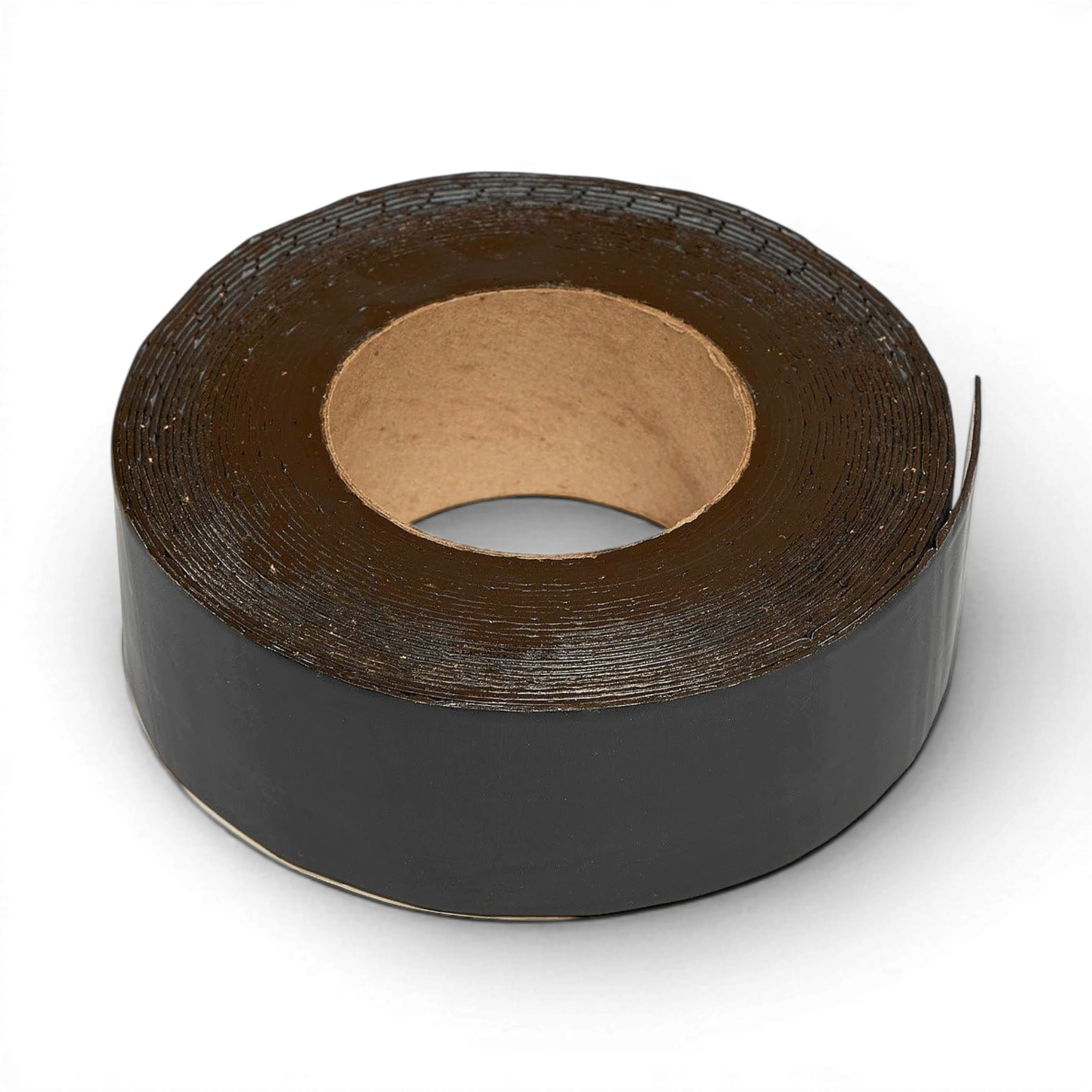

DrARTEX EV Black Band is a narrow-format Electra EV damping material for targeted areas where a continuous band is more practical than a full sheet.

It uses ASRM technology with aluminum foil to provide clean, lightweight damping in a roll format, without bitumen odor or the dirty-hand feel of traditional materials. The band format supports controlled application around narrow or continuous sections of an EV installation.

Name of index	Value	Testing method
Tape Width	4.9cm
Material Thickness	1.3mm
Density	0.75
Mastic	AEROSPACE (ASR)	ROHS (EU) 2015/863
Pieces per Package	12
Length	10m
Package Contents	12 pcs x 10m
Foil (Outer) Thickness	100µm +/-10%	GOST 17073-71
Mechanical Loss Factor on metal plate with thickness 1mm at temperature less than +20ºС	0.75	EVALUATION
Fire risk, burning rate	Non-flammable, <100mm/min	ISO 3795-76
Durability of connection between the material and the metal surface during flaking-off	10.5N/cm	ISO 813:2010
Operating Temp. Range	-40 to +90°C
Max. Temp. Intermittent	150°C
Package weight	10.7kg +/-10%
Package volume	0.02m³ +/-10%
