Specifications
VibroBarrier 7+ is a multilayer heavy acoustic insulation material for firewall, boot-floor, and passenger-compartment floor applications. It is intended to add a substantial barrier layer where road, tyre, and structural noise need broader control.
Its construction combines a non-woven surface, heavy butyl-rubber membrane, elastic foam, and an adhesive layer. The layered design supports durable installation and helps combine vibration control with acoustic insulation in large vehicle panels.

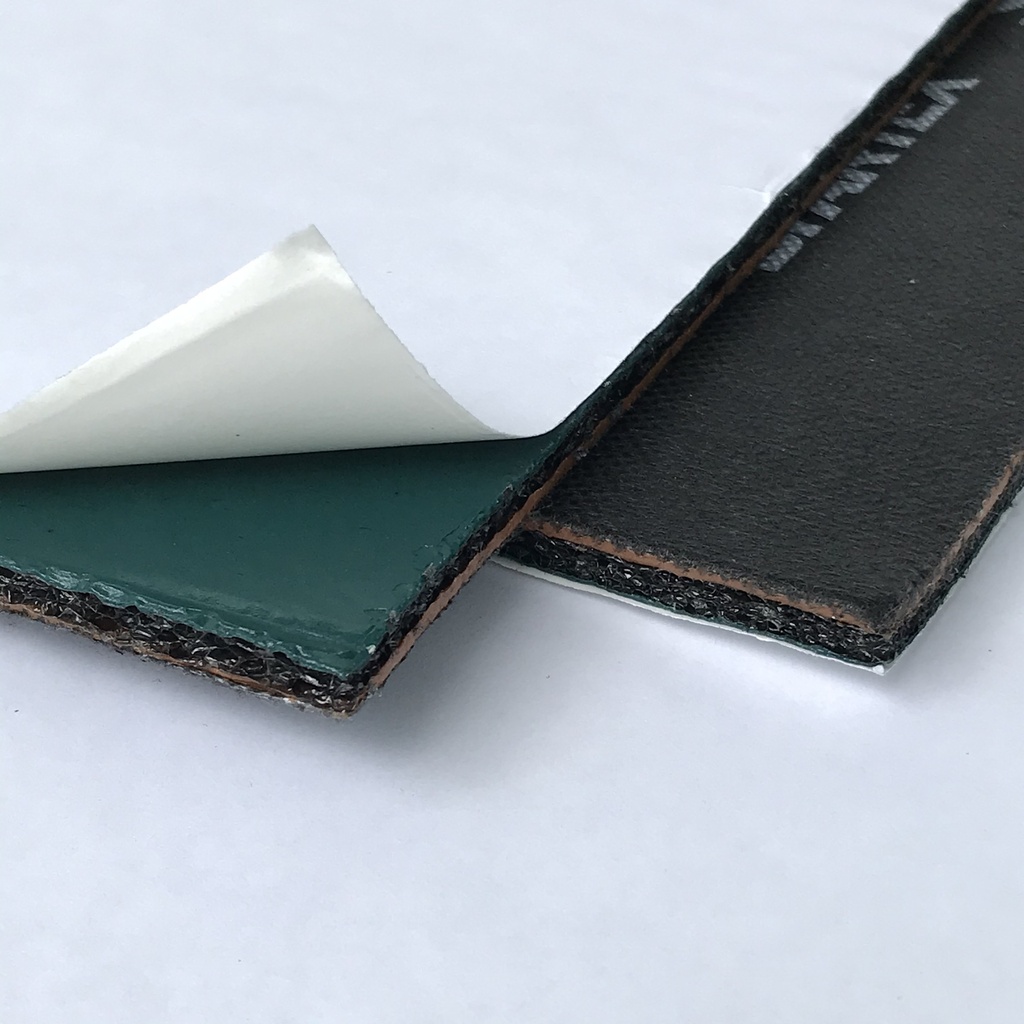

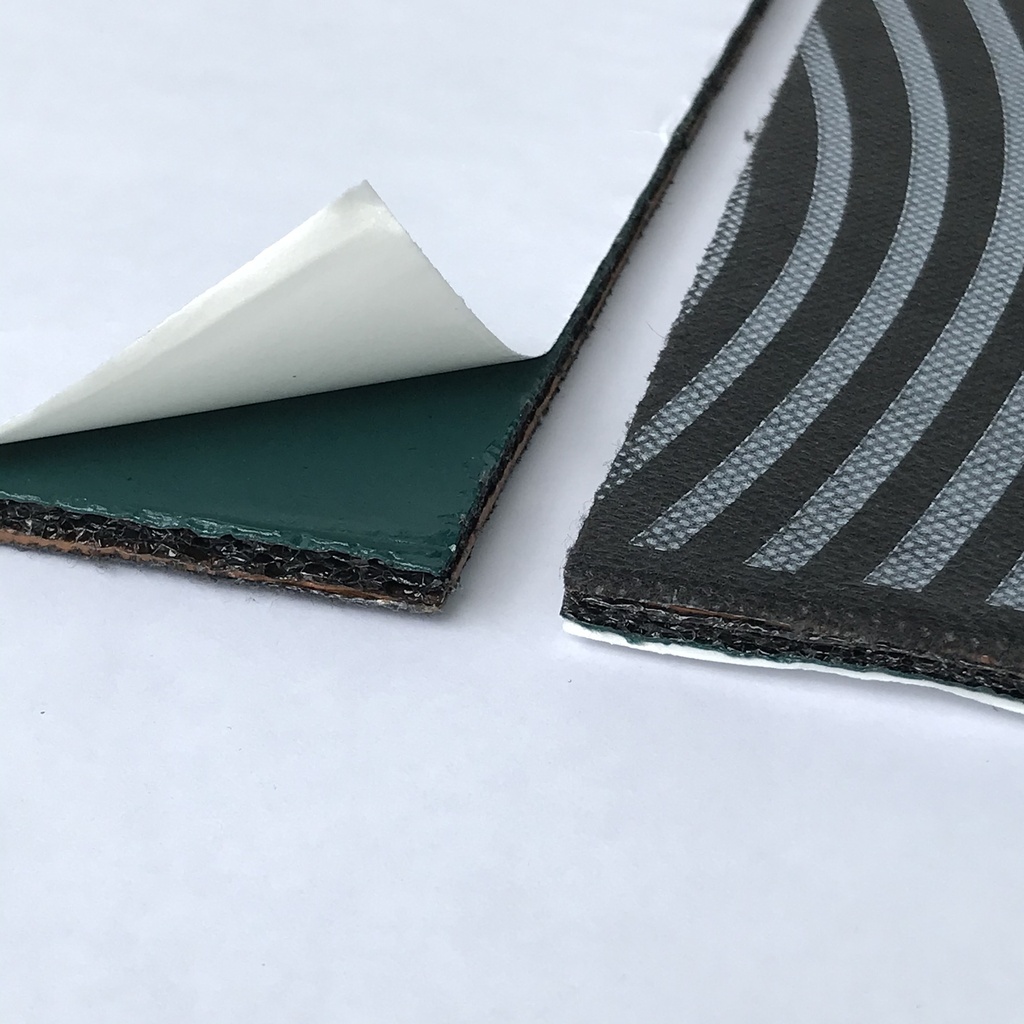

A multi-layered combination of non-woven fabric with PPE layer, heavy layer membrane based on butyl-rubber mastic, elastic foamed polyethylene with added 0.4 mm synthetic butyl rubber adhesive layer and anti-adhesive paper.
Firewall, boot floor and passenger compartment floor
Material should be stored inside at temperature not higher than +40°С in horizontal position on a flat surface at a distance not less than 1 m from any heating systems; avoid any wet conditions and contacts with oils and direct sun.
Do not stack the materials more than 1.2m in height.
| Name of index | Value | Testing method |
|---|---|---|
| Sound absorption factor | 36dB | |
| Material Thickness | 7mm | |
| Sheets per Package | 11 | |
| Sheet Length | 50cm | |
| Sheet Width | 37.5cm | |
| Total Sheet Area | 2.0625m² | |
| Package Contents | 11 sheets 50x37.5cm | |
| Fire risk, burning rate | Non-flammable, <100mm/min | ISO 3795-76 |
| Durability of connection between the material and the metal surface during flaking-off | >4N/cm | |
| Operating Temp. Range | -40 to +90°C | |
| Max. Temp. Intermittent | 120°C | |
| Package Dimension (W*L*H) | 29*55*7 | |
| Package weight | 12.99kg +/-10% | |
| Package volume | 0.01m³ +/-10% |
