Specifications
Shield is a thin sealing and acoustic layer for creating enclosed spaces inside vehicle doors. It is intended to close the area around a door speaker and support a more controlled acoustic environment.
Its two-layer construction combines vibration-damping mastic with aluminum foil, giving installers a flexible material with strong adhesion for complex door surfaces. It is especially relevant to high-end car-audio and specialist audio door treatment where enclosure detail matters.

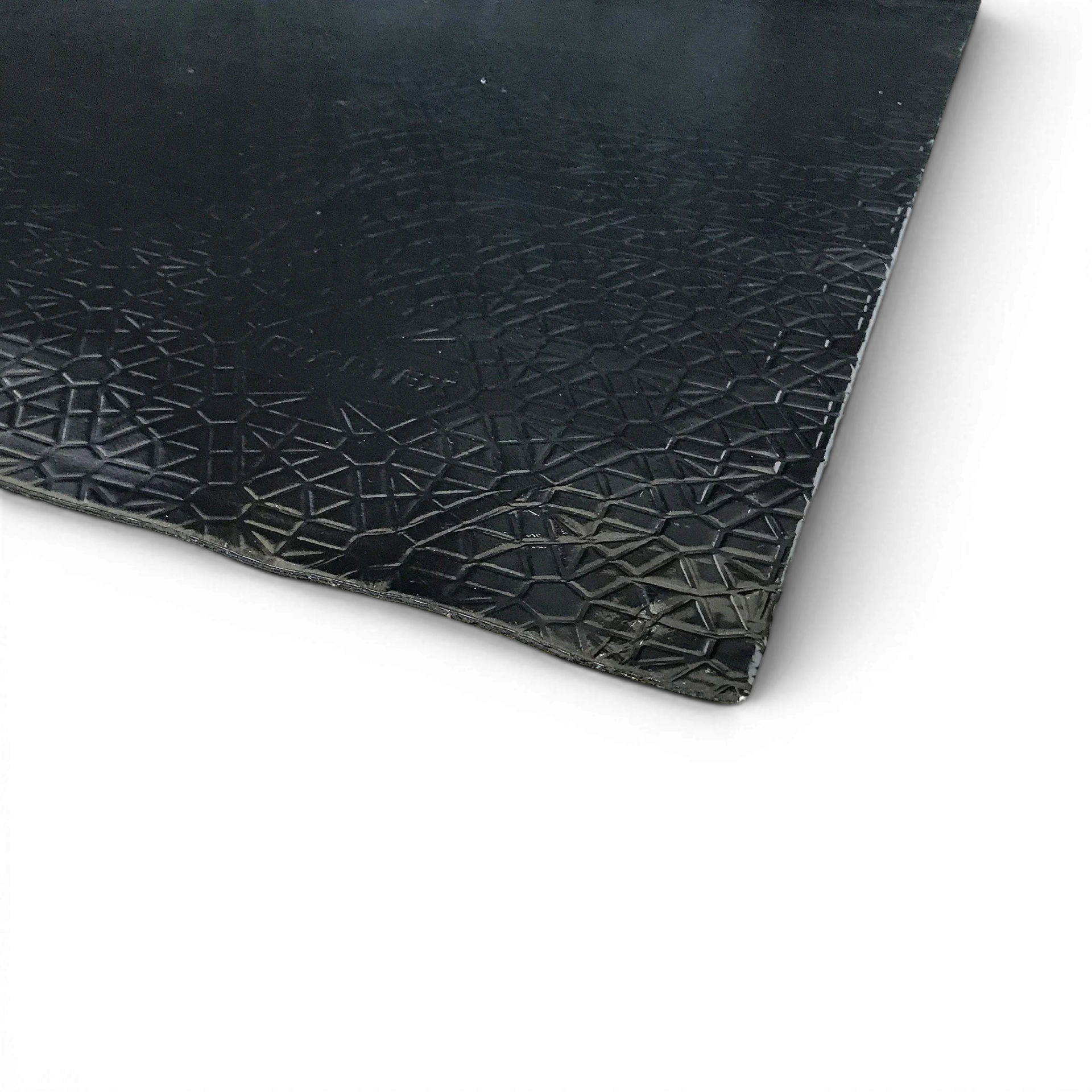

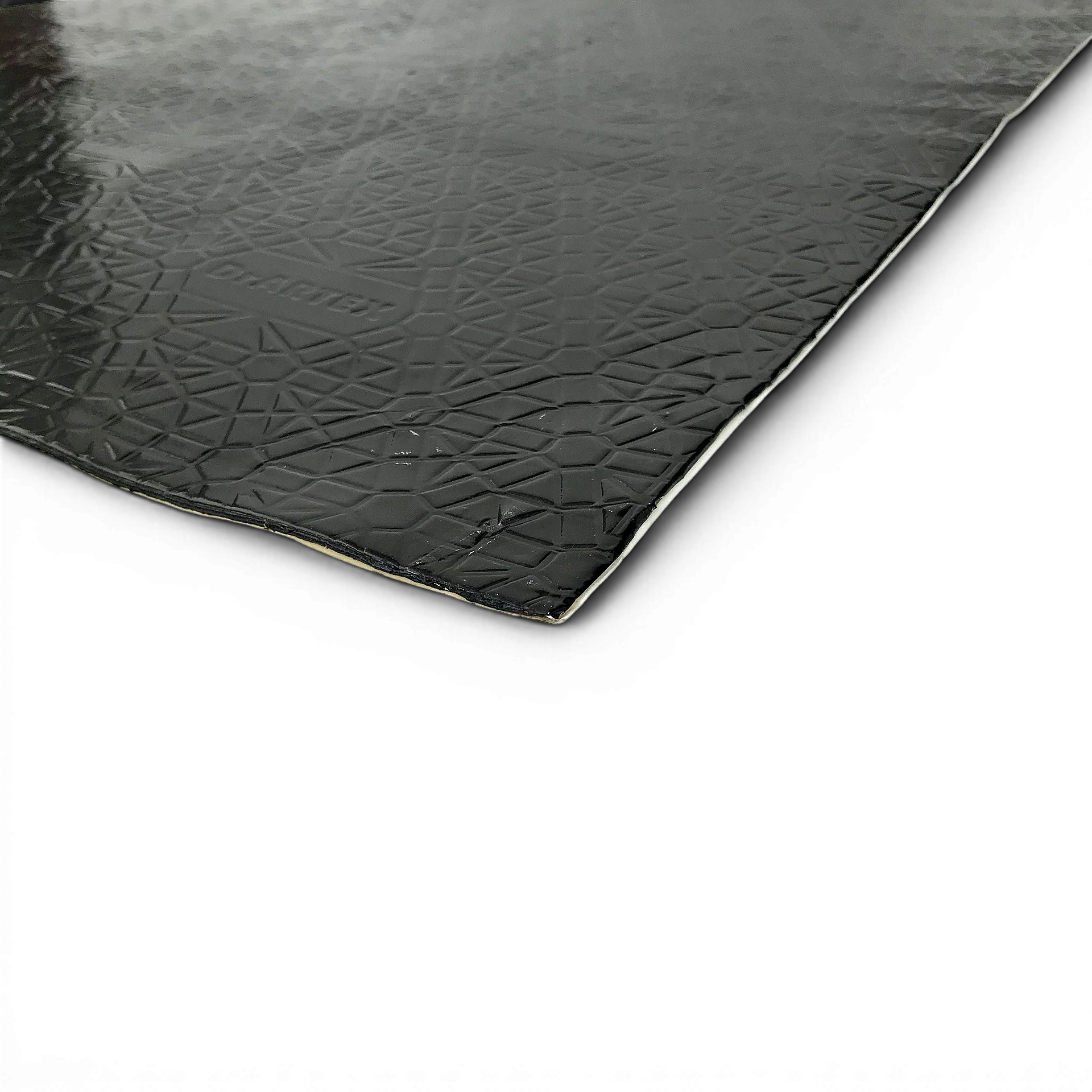

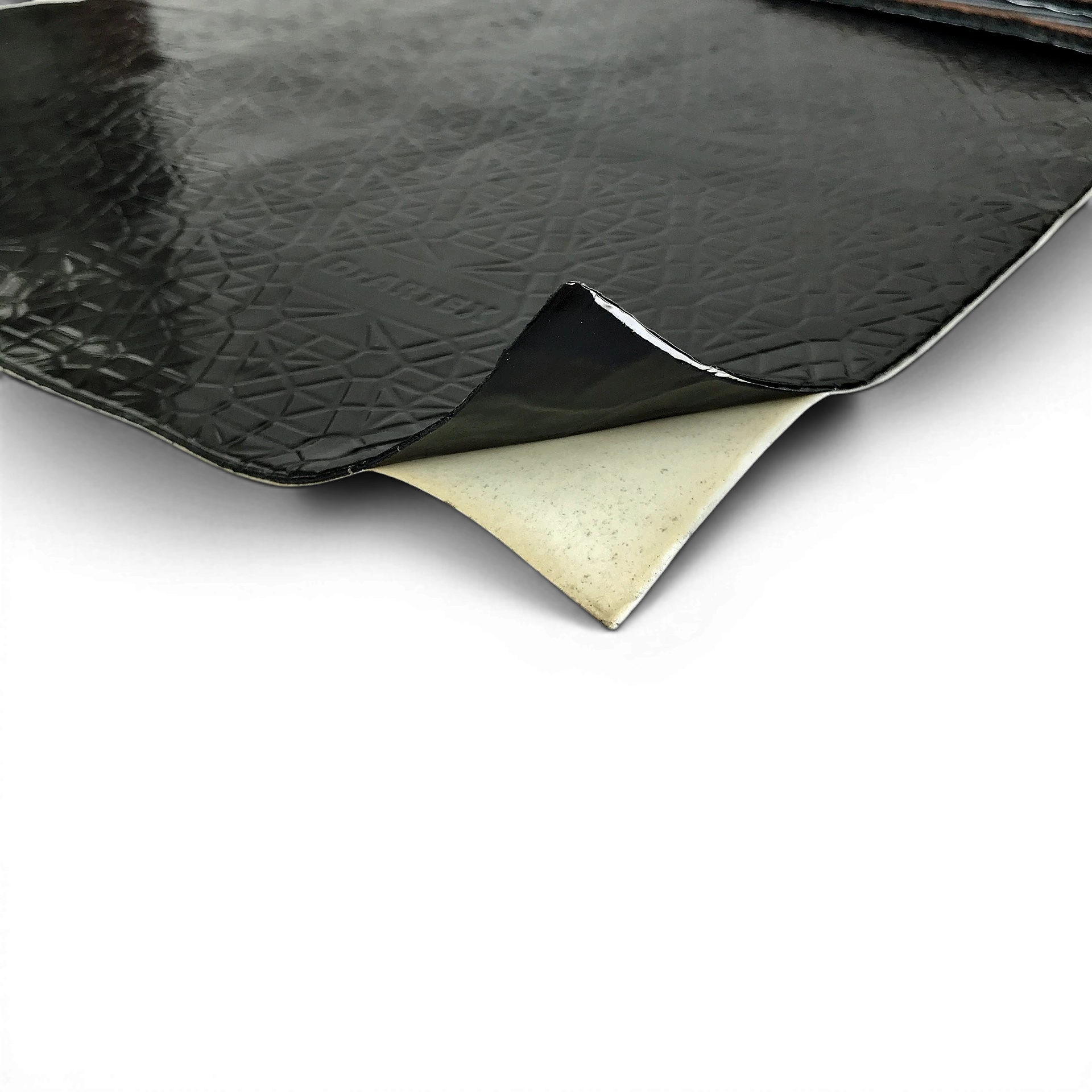

This product is two-layer sandwich consisting of thin layer of vibration-damping mastic with aluminum foil.
Install on clean, dry painted surfaces, including complex door surfaces. Do not apply to corroded metal. Clean with water and a neutral detergent, allow the surface to dry, then degrease with a suitable solvent and let it dry completely. Press the material firmly from the centre outward to avoid trapped air, then roll it thoroughly. Apply in a working environment between +18 and +35°C.
Recommended application: creating enclosed spaces around door speakers.
Material should be stored inside at temperature not higher than +40°С in horizontal position on a flat surface at a distance not less than 1 m from any heating systems; avoid any wet conditions and contacts with oils and direct sun. Do not stack the materials more than 1.2m in height.
| Name of index | Value | Testing method |
|---|---|---|
| Material Thickness | 2mm | |
| Sheets per Package | 10 | |
| Sheet Length | 75cm | |
| Sheet Width | 50cm | |
| Total Sheet Area | 3.75m² | |
| Package Contents | 10 sheets 75x50cm | |
| Foil (Outer) Thickness | 60µm +/-10% | GOST 17073-71 |
| Foil (Inner) Thickness | 60µm +/-10% | GOST 17073-71 |
| Mass per m² | 3kg +/-10% | |
| Fire risk, burning rate | Non-flammable, <100mm/min | ISO 3795-76 |
| Durability of connection between the material and the metal surface during flaking-off | >8N/cm | |
| Operating Temp. Range | -40 to +90°C | |
| Max. Temp. Intermittent | 150°C | |
| Package Dimension (W*L*H) | 54.0*77.0*5.0 | |
| Package weight | 12.5kg +/-10% | |
| Package volume | 0.02m³ +/-10% |
